Model 3-R-4

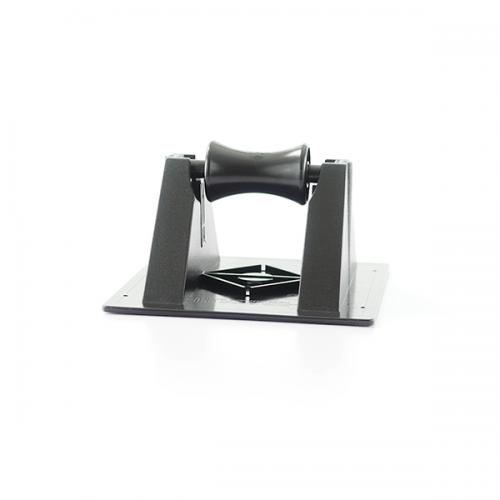

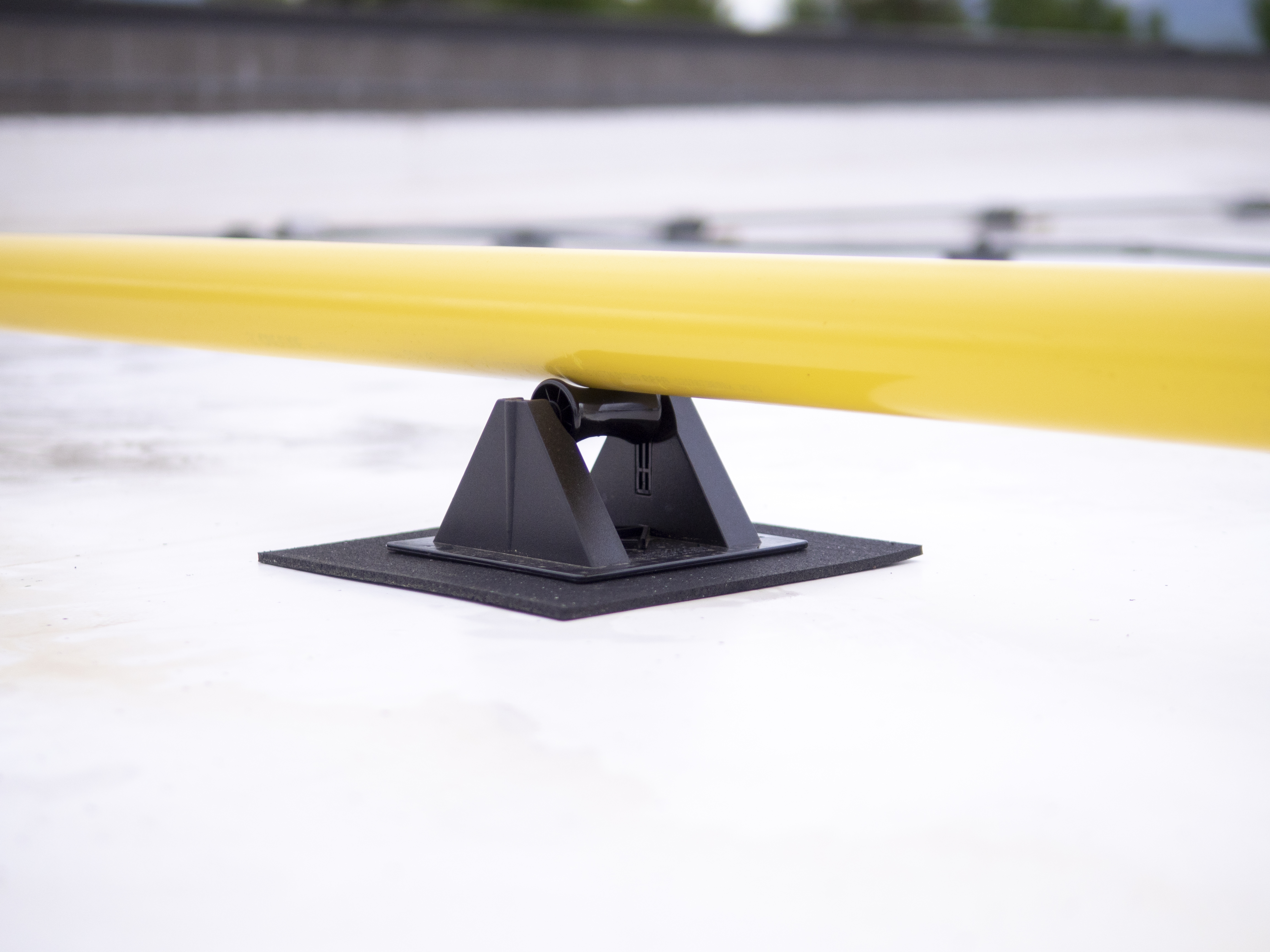

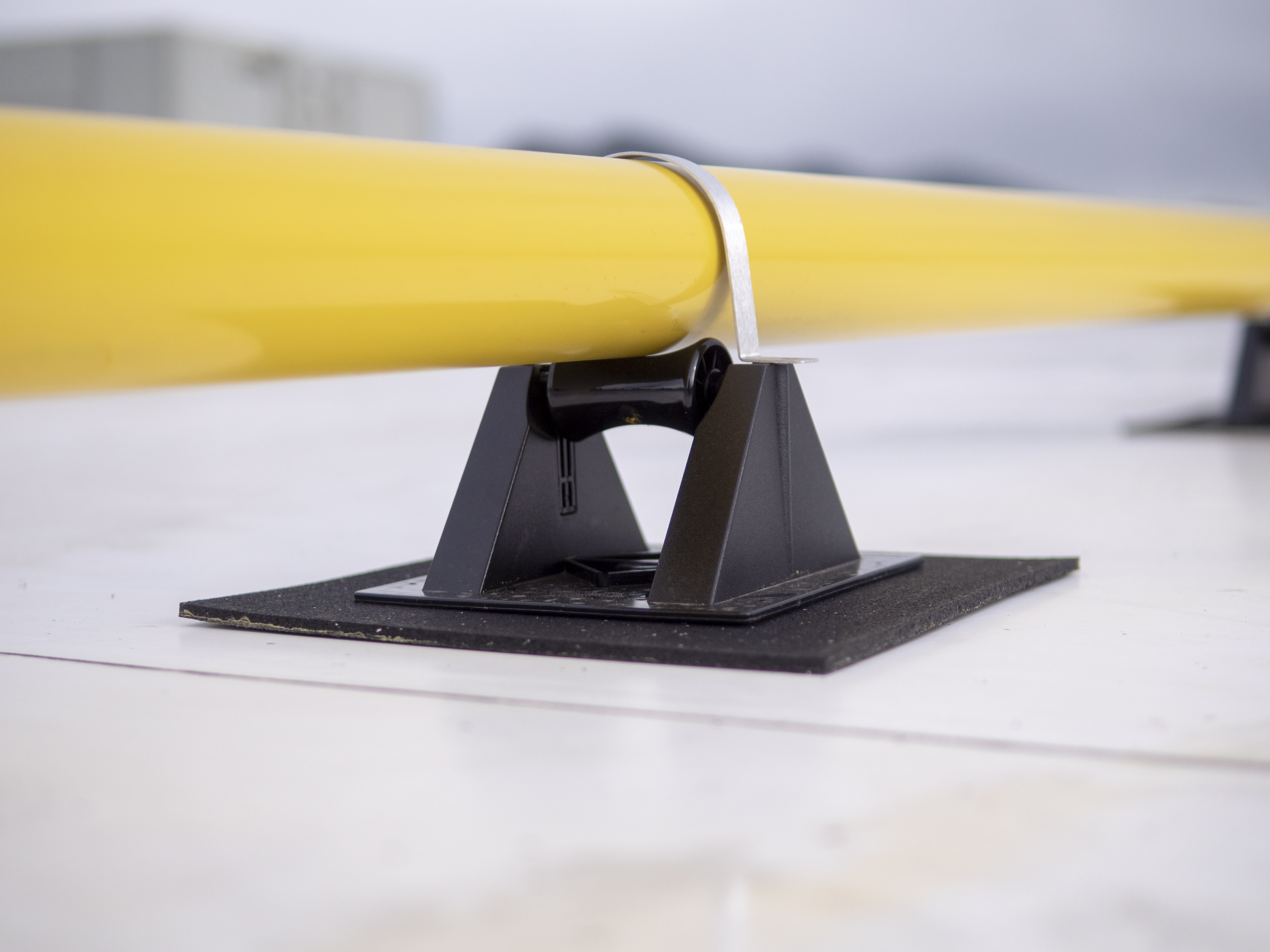

A “roller-bearing” pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a polycarbonate resin roller and a rod situated in a polycarbonate resin seat. Each pipestand will accommodate up to 3-3/4″ outside diameter pipes.

Contact Your Rep to Buy



SKU: 3-R-4 Category:

Description

Base Material
Polycarbonate
Size
The Pillow Block Pipestand Model 3-R-4 is made in one standard size. The deck base is 7.75″ square, the top of the roller device is 4″ high, the top of the cradle is 4″ high, and the maximum width of the interior of the cradle is 3.875".
Max Pipe Size
3" inside diameter and 3.75" outside diameter.
Max Pipe Clearance

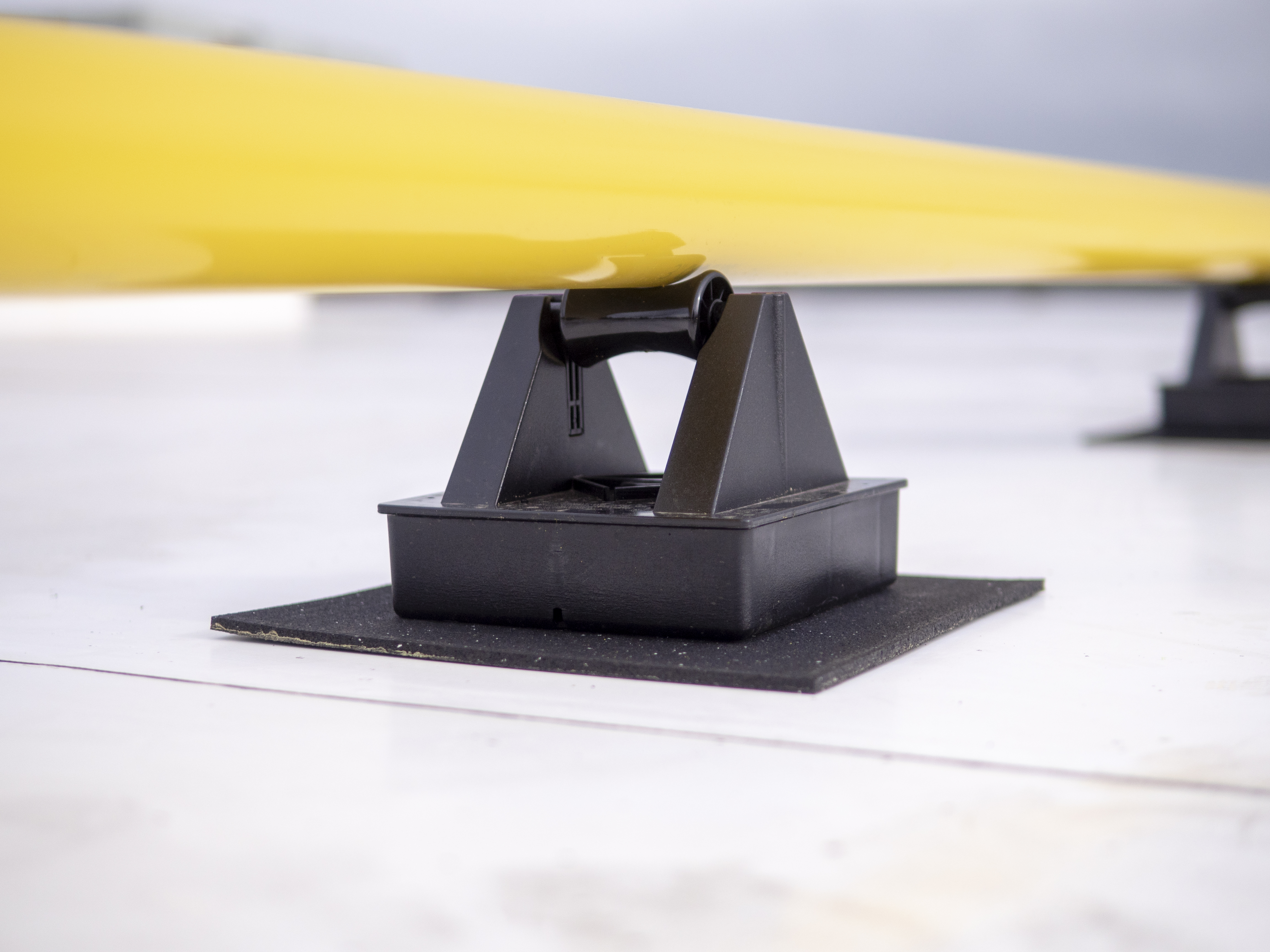

Rod and pipes supported one pipestand high will have a clearance of 4″. Each 3-R spacer increases the clearance of the pipe by 2″.
Max Load Weight
Maximum load weight may not exceed 118 lbs. per pipestand
Spacing
Recommended spacing is not to exceed 7 feet centers depending upon the load. Make certain each pipestand is properly elevated to even load weight at all pipestands.
