MIRO rooftop frame supports with clevis hanger for insulated pipes

Rooftop Hanger and Roller Pipe Supports

MIRO’s rooftop pipe hangers and stands are a long-lasting, reliable, and adjustable solution to supporting large rooftop piping, such as water lines, ammonia lines, gas lines, and more. They are available in a number of different configurations for each and every rooftop layout. MIRO’s industrial pipe support configurations include clevis hangers, roller chairs, roller hangers, and trapeze hangers. Each can be configured to support multiple pipes, whether they are stacked or side-by-side.

Download Pipe Support Quote Template

Request a Quote

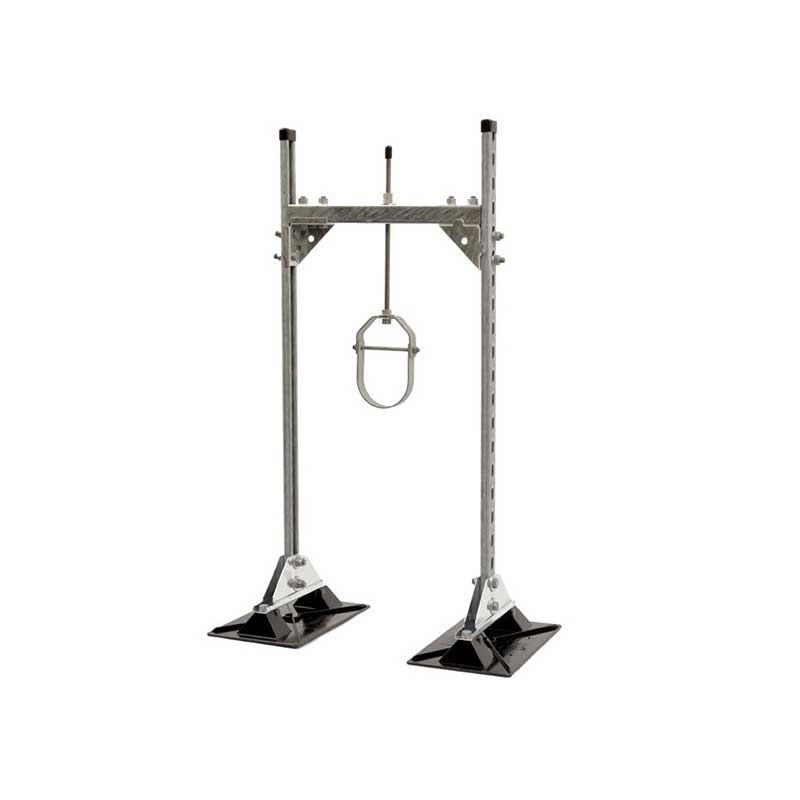

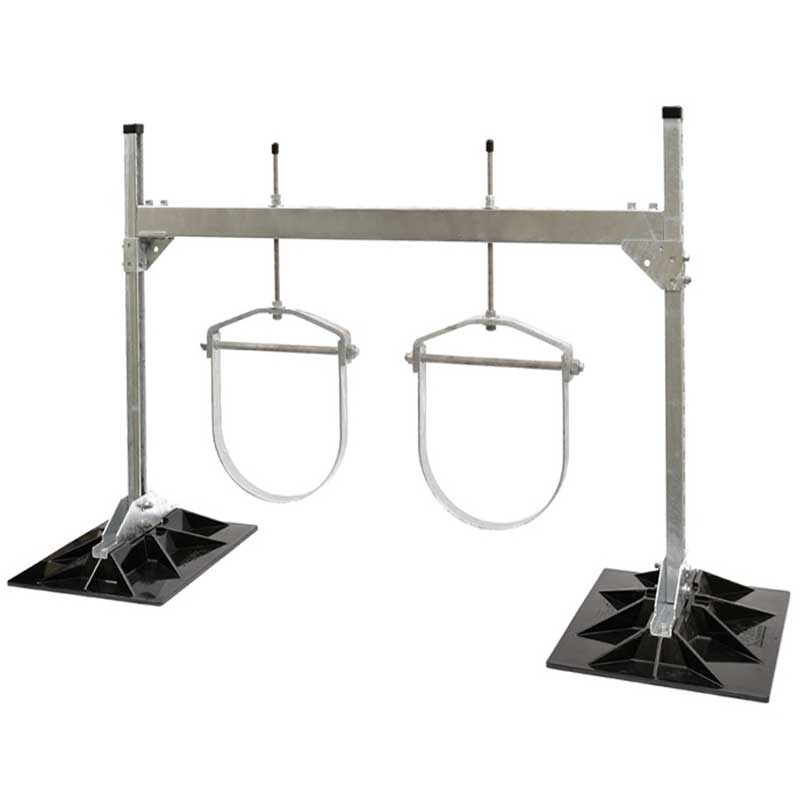

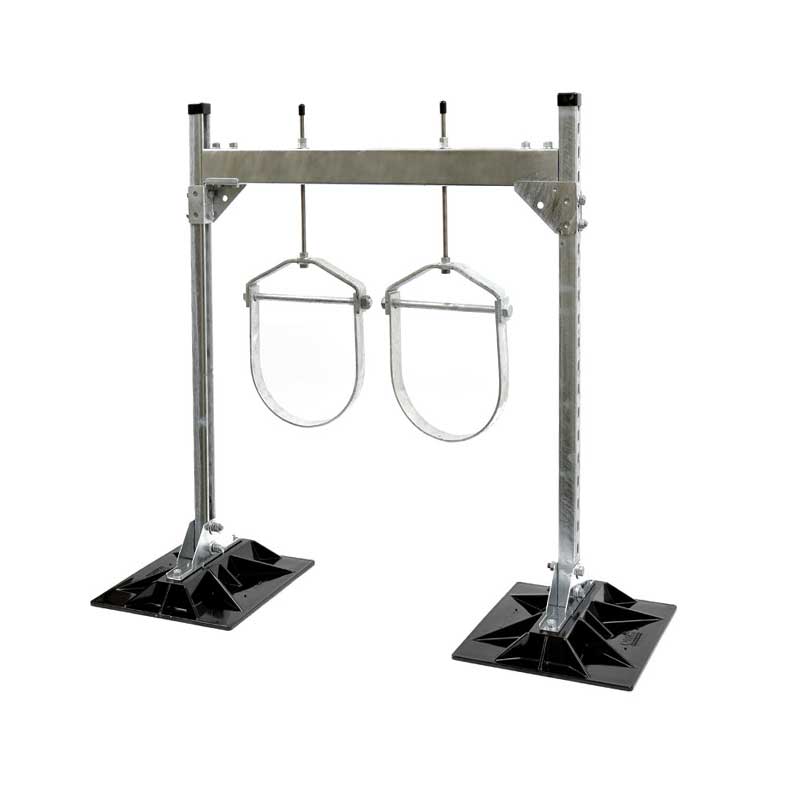

The MIRO 6-H, 8-H, and 10-H custom rooftop pipe hangers and stands offer varying levels of support based on load requirements. The 6-H Series features the smallest base feet, making it ideal for lighter loads. The 8-H Series has larger base feet, providing enhanced stability for medium loads. For heavy-duty applications, the 10-H Series offers the largest base and most robust support structure. Each option is made with high quality materials, including polycarbonate, hot-dip galvanized steel, and stainless steel, ensuring durability in various environments. Choosing the right stand depends on load weight, rooftop conditions, and structural requirements. We would love to learn more about your project and quote the right product to meet your specifications. Click here to request a quote today.

PIPE HANGER OPTIONS

Clevis Hanger

Roller Hanger

Roller Chair

Trapeze

Clevis Hangers

Clevis hangers are the most common and widely accepted method for suspending pipes. With a long-standing history in the industry, they offer a reliable solution for various applications. One of the key advantages of clevis hangers is their ability to easily adjust the height of the pipe without the need to remove it or the support. This feature makes them particularly ideal for sloped applications where slight adjustments are necessary. Additionally, clevis hangers are cost-effective, providing a budget-friendly option for many projects. However, it’s important to note that they may not be the best choice for seismic and wind applications.

Roller Hangers

Roller hangers provide the same benefits as clevis hangers with an added feature: a roller that allows the pipe to move freely forward and backward. This design prevents the transfer of pipe movement to the hanger and support frame, making it an excellent choice for applications where pipe expansion and contraction are a concern. While roller hangers enhance flexibility, they also share the same limitations as clevis hangers when it comes to seismic and wind applications.

Roller Chair

Roller chairs are designed to accommodate forward and backward pipe movement, although they do not allow for side-to-side movement like traditional hangers. While achieving slight adjustments can be more challenging with roller chairs, they shine in new construction scenarios. They enable the simultaneous installation of multiple pipes along several stands, facilitating the joining of pipes through welding or gluing. Additionally, roller chairs can be easily adapted for seismic and wind applications with the use of a strap, offering a practical solution where clevis and roller hangers may face challenges.

Trapeze Hanger

The trapeze option combines the benefits of pipe suspension with the convenience of quick installation, especially when supporting multiple pipes. This method allows for slight and easy adjustments, making it user-friendly for installers. However, caution is advised as trapeze hangers can create point loading on pipes, concentrating the weight on a small contact point. Despite this potential drawback, trapeze hangers are a popular choice for projects requiring efficient installation of multiple pipes.

Frame Only

Laying the pipe directly on the frame lacks the features of other options, but is the quickest to install. It is also a preferred application if using pipe clamps are required. Sometimes a pipe manufacture will require specific pipe clamps to be used, so using just the frame will cater to that constraint, since pipe clamps are not compatible with hangers or roller chairs.

Types of Pipe and Generally Preferred Method of Installation:

Condensate and Electrical Conduit – Typically installed using just the frame with pipe clamps.
Gas Pipe – Preferred methods include roller hangers or roller chairs—anything with a roller. While clevis hangers are also common, gas pipes are usually small, making framed supports uncommon. Small supports like the 3-RAH-8 are the most common for gas piping.
Water/Glycol Pipe with Insulation – Clevis hangers are generally preferred because these pipes are heavy, requiring even load distribution to prevent point loads. Additionally, maintaining the proper slope is critical for system performance.
Ammonia Pipe – Trapeze supports are commonly used.
Air Pipe – Installation depends on the specifier’s preference, but generally, a frame-only support is used.
MIRO’s Rooftop Pipe Hangers and Stands are designed for durability and stability for long-lasting performance in any environment.
