Model 3.0

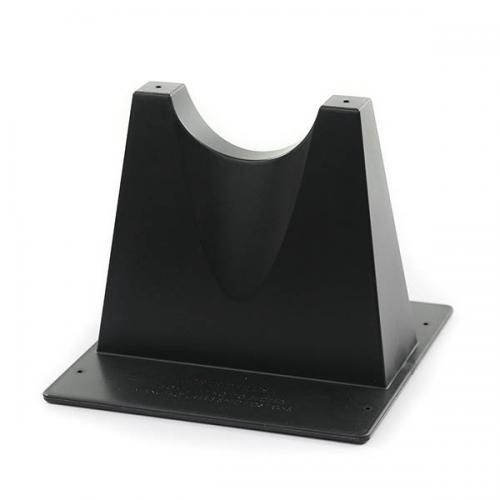

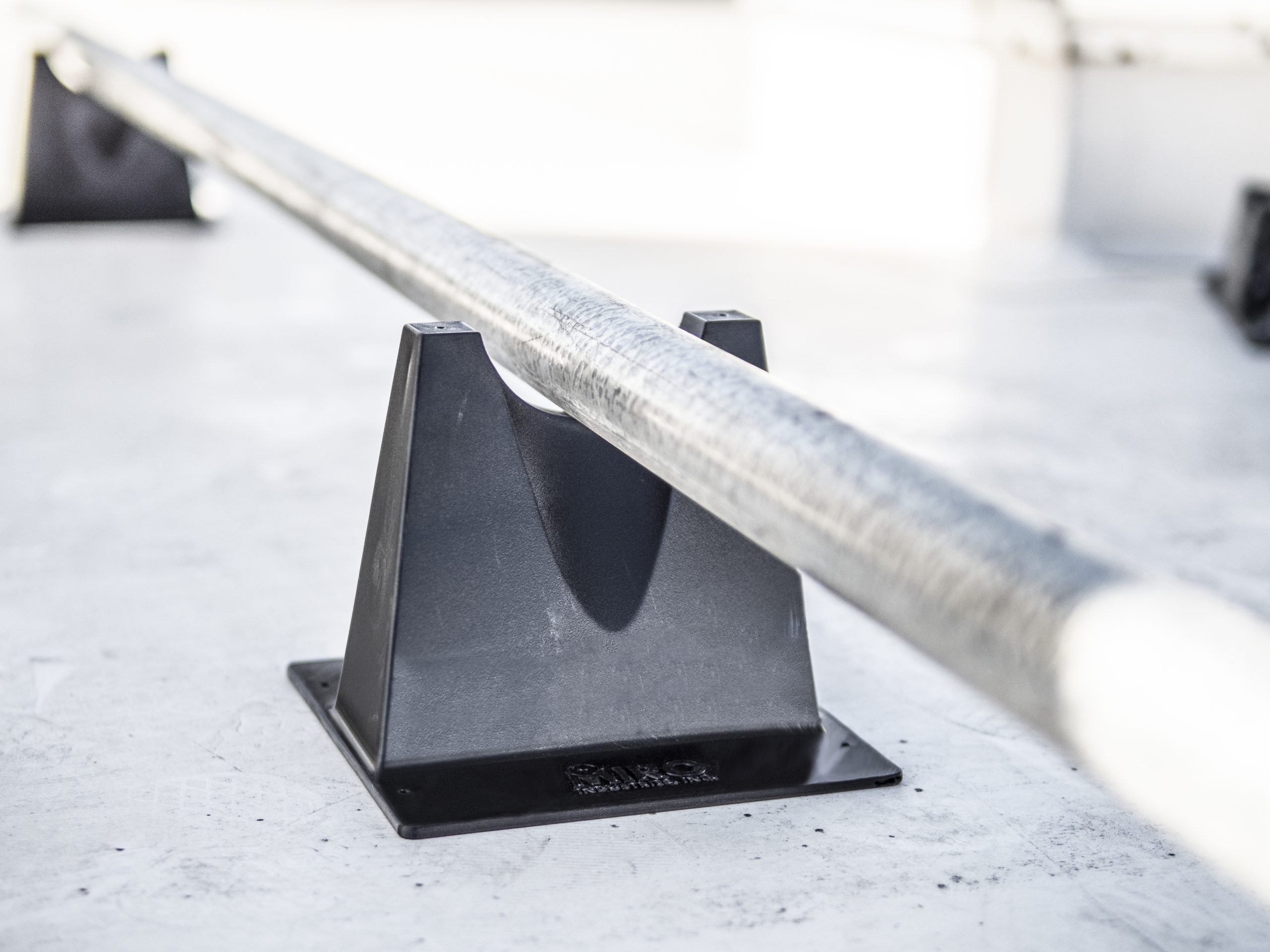

A pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Pipes rest in a ‘U’ shaped cradle situated in a polycarbonate resin seat. Each Model 3.0 stand will accommodate up to 3″ inside diameter pipes. The maximum outside diameter of pipe which can be cradled in the Model 3.0 support is 3.5″. Compatible with the 3-R spacer for extra height, as well as pipe guides and our 12″ x 12″ support pad.

Available Now!

SKU: 3.0 Category:

Description

Base Material
Polycarbonate
Size
The deck base is 7.75" square, the stacking platform is 5" high, and the maximum inside width of the cradle is 3.5"
Max Pipe Size
3" inside diameter and 3.5" outside diameter.
Max Pipe Clearance
Pipes supported one pipestand high will have a clearance of 5" over the roof
Max Load Weight
Maximum load weight may not exceed 120 lbs. per pipestand
Spacing
Manufacturer's recommended spacing is not to exceed 10 feet centers depending upon the load.
