Description

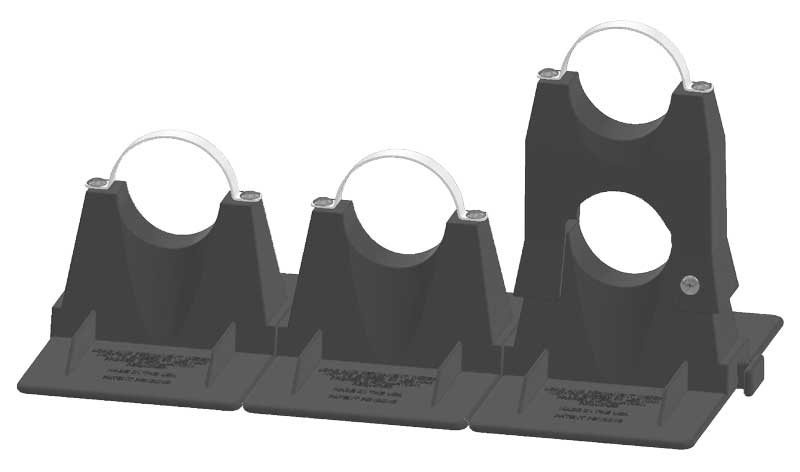

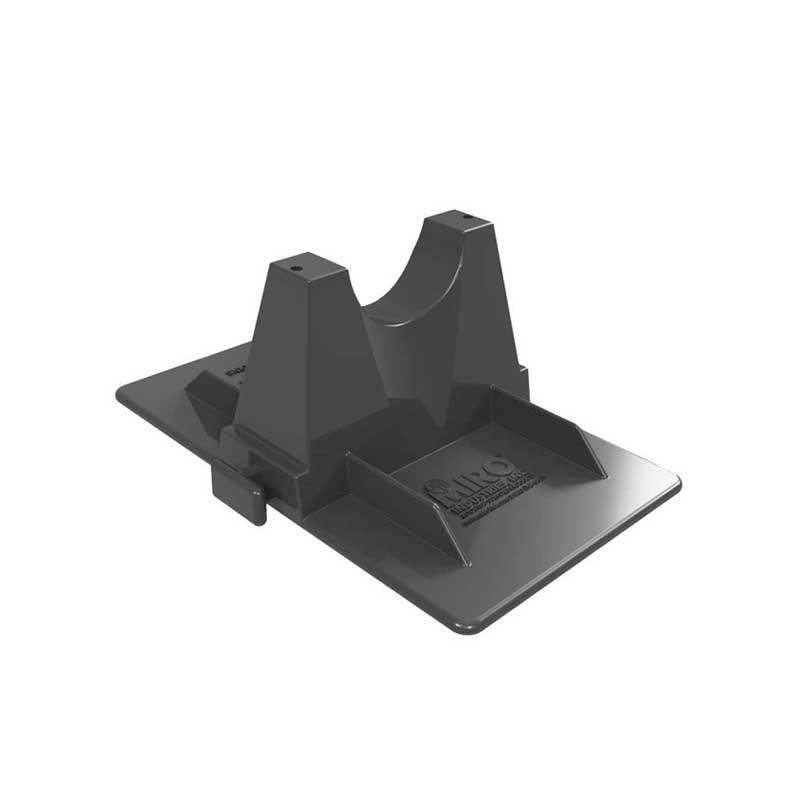

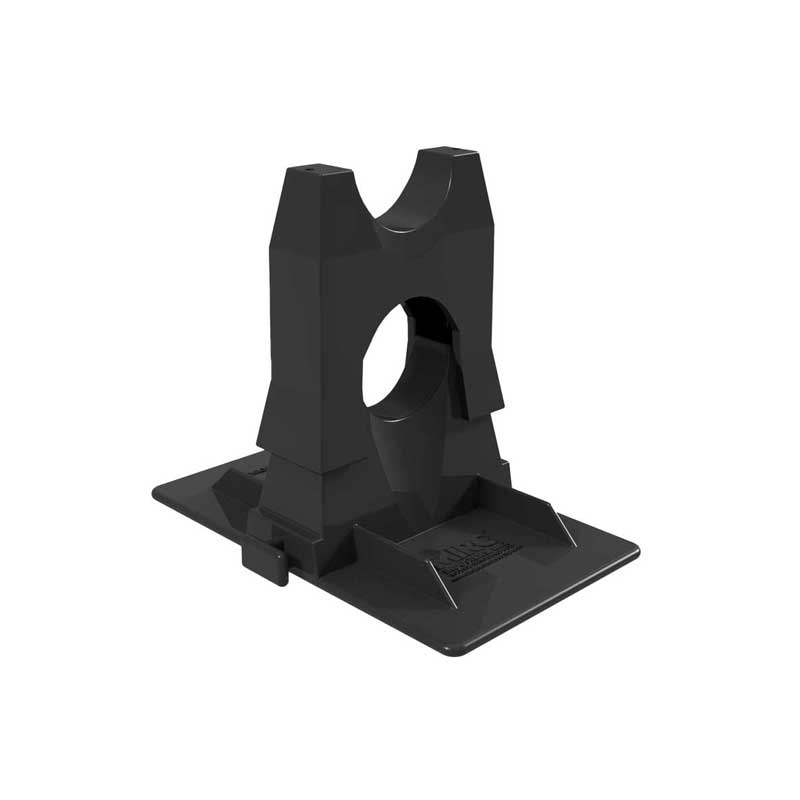

The MIRO 1.5 Link, an innovative interlocking pipe support designed to provide exceptional stability for multiple pipe runs. This versatile system features bases that interlock side by side, allowing for robust support in a horizontal direction. For vertical applications, the 1.5 Link-Truss accessory enhances the system, making it ideal for stacking pipes efficiently.
Key Benefits:
- Sturdy and Clean Application: The interlocking design locks supports together, ensuring a neat and secure setup for multi-pipe runs.
- Easy Stacking: With the 1.5 Link-Truss, stacking pipes becomes a straightforward and tidy process, making it the perfect stackable conduit block for your rooftop needs.
- Adaptable Design: The MIRO 1.5 Link system is versatile and adaptable, easily accommodating changes in your pipe runs.
Key Specifications:
- Load Capacity: Optimized to carry up to three 1-1/2 inch pipes in a stack when using the 1.5 Link-Truss accessory.
- Maximum Pipe OD: 1.9 inches.
- Clearance Height: 2 inches for the support, plus an additional 3 inches for each Truss accessory.
- Maximum Load: 70 lbs based on a 3.0 PSI load to the roof deck, with even load distribution required.
- Unit Weight: 0.3 lbs.
- Recommended Spacing: Not to exceed 7 feet centers, depending on the load.
- Warranty: Backed by a 20-year warranty for peace of mind.
- Base Material: Constructed from durable polycarbonate.
The MIRO 1.5 Link and its accessory, the 1.5 Link-Truss, are engineered to provide a reliable and efficient solution for your rooftop support needs. Elevate your installations today with this innovative interlocking pipe support system and experience the benefits of a stackable conduit block designed for durability and adaptability.
Base Material | Polycarbonate |
Size | The deck base is 7.25x4.4375". the stacking platform is 2" high, the top of the "U" cradle is 3" high, and the maximum inside width of the cradle is 1.95" |
Max Pipe Size | 1-1/2" inside diameter and 1-9/10" outside diameter. |
Max Pipe Clearance | Pipes supported one pipestand high will have a clearance of 2" over the roof |
Max Load Weight | Maximum load weight may not exceed 70 lbs. per pipestand |
Spacing | Manufacturer's recommended spacing is not to exceed 7 feet centers depending upon the load. |
