Description

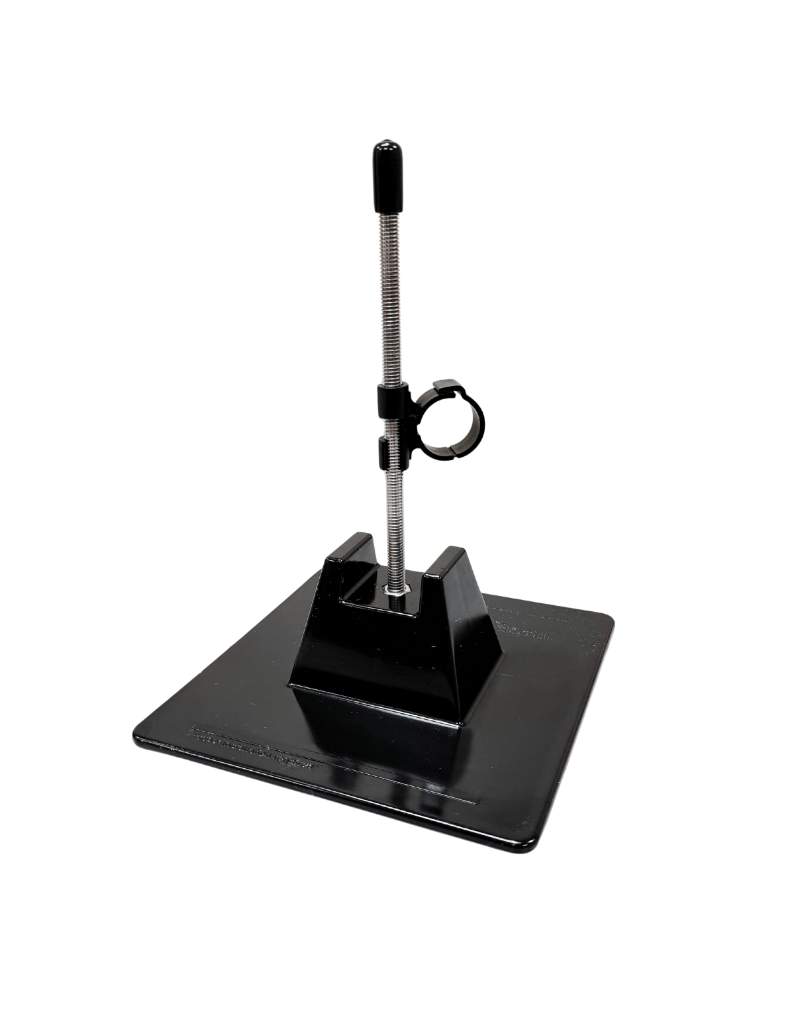

CAH-8, CAH-12 Rooftop Condensate Pipe Support
Support your rooftop condensate pipes, gas pipes, electrical conduit, solar piping, and other mechanical piping with MIRO’s CAH single post pipe support. Featuring an all-thread rod mounted clip, this support allows for finite height adjustment in the field, giving installers the flexibility to hit the exact height they need on every run.
Size Options

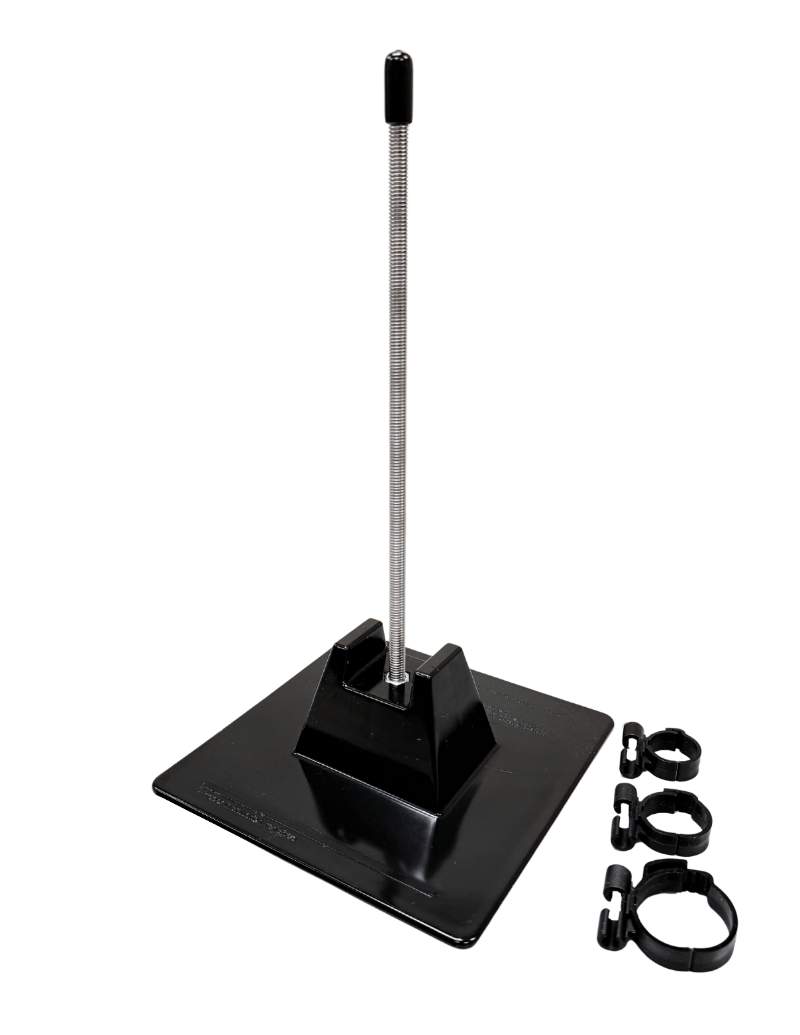

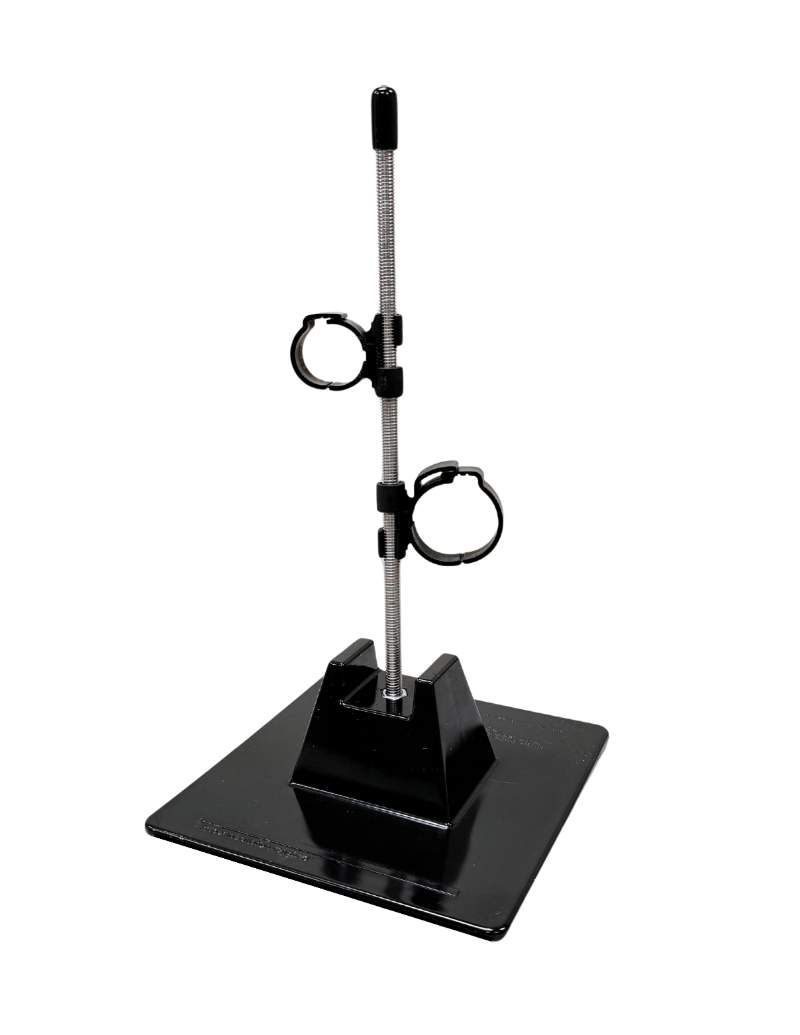

The CAH is available in two base heights (8-1/2″ and 12″ all-thread lengths) and three pipe clip sizes, for six total model configurations:
| Model | Pipe Size | Height Off Roof |
|---|---|---|
| 3/4-CAH-8 | 3/4″ | 3-1/8″ to 6-5/8″ |
| 1-CAH-8 | 1″ | 3-1/8″ to 6-1/2″ |
| 1-1/4-CAH-8 | 1-1/4″ | 3-1/8″ to 6-1/4″ |
| 3/4-CAH-12 | 3/4″ | 3-1/8″ to 10-1/8″ |
| 1-CAH-12 | 1″ | 3-1/8″ to 9-7/8″ |
| 1-1/4-CAH-12 | 1-1/4″ | 3-1/8″ to 9-5/8″ |
Key Benefits
- Finite, in-field height adjustment via all-thread rod design, no cutting or guesswork required
- Durable polycarbonate base built to withstand rooftop conditions
- Corrosion-resistant 3/8″ stainless steel all-thread for long-term reliability
- Composite polyamide clip accommodates pipes up to 1-1/4″ in diameter
- Low-profile single post design keeps rooftop clutter to a minimum
- Compatible with optional 12×12 support pad for added load distribution
Key Specifications
- Base material: Polycarbonate
- All-thread: 3/8″ stainless steel
- All-thread clip: Composite polyamide
- Pipe sizes supported: 3/4″, 1″, and 1-1/4″
- Maximum load: 50 lbs per support (ensure proper elevation and even weight distribution across all support locations)
- Unit weight: 1.18 lbs
- Packaging: 8 units per case
- All-thread clips installed in-field
- Support spacing should not exceed pipe manufacturer’s recommendations
Available Accessories
- All-thread clips in 3/4″, 1″, and 1-1/4″ sizes
- 12×12 support pad
