12-Base Strut-12

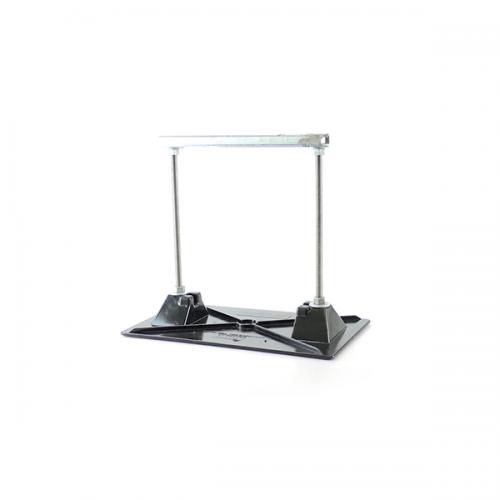

A pipe support with “strut” used to support roof-mounted electrical conduit, solar piping, gas pipes, and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a strut system which is made of hot-dip galvanized steel. The pipe support base is made of polycarbonate resin, and all other metal parts are made of hot-dip galvanized or stainless steel.

Contact Your Rep to Buy

Previous model name: 16-BS-12


SKU: 12-BS-12 Category:


Base Material
Polycarbonate | Stainless Steel Available
The deck base is 9″ by 15.25″ and has a maximum channel length of 12".
Max Pipe Clearance
Adjustable support height from 4.25" to 13.25″.
Max Load Weight
Maximum load weight may not exceed 335 lbs. per pipestand.
Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load.



Polycarbonate Base

Spec and Drawing Sheets (PDF)

Drawing (DWG)

Stainless Steel Base

Spec and Drawing Sheets (PDF)

Drawing (DWG)
