Description
Base Material | Polycarbonate |
Size | The deck base is 7.5″ by 10″ and the strut is 1 5/8″ by 13/16″ strut and 8″ long. |
Max Pipe Clearance | Maximum pipe clearance of 5.375″. |
Max Load Weight | Maximum load weight may not exceed 172 lbs. per pipestand |
Spacing | Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load. |

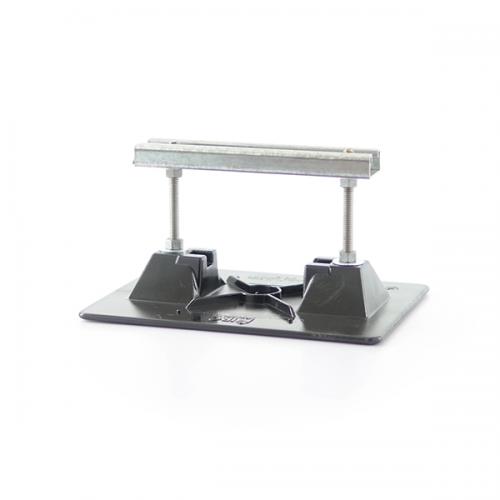

The 8-Base Strut-5 provides a reliable rooftop support designed to hold various utilities securely. This electrical conduit base stand excels at supporting roof-mounted electrical conduit, solar piping, and gas pipes. Its sturdy design ensures that your installations remain safe and stable.
Key Features
- Base Material: The durable polycarbonate base offers excellent support.
- Deck Base Size: The deck measures 7.5 x 10 inches, providing ample space for your needs.
- Adjustable Height: You can easily adjust the height of the 8-Base Strut-5 from a maximum of 5.375 inches down to 3.5 inches, allowing for flexibility in installation.
- Load Capacity: This strut supports a maximum load of 172 pounds, making it suitable for various applications.
Additionally, the 8-Base Strut-5 accommodates an electrical conduit base stand. This feature simplifies the installation and maintenance of electrical conduits on rooftops. Furthermore, the strut works seamlessly with a roof cable tray support, ensuring that your cable trays stay securely in place.
Installation Guidelines
- Center the strut beneath the pipe or conduit.
- Adjust the height to your desired level.
- Ensure that the load distributes evenly across the support.
The 8-Base Strut-5 fits all current deck types and roofing membranes. This versatility makes it a great choice for various roofing projects.
Overall, the 8-Base Strut-5 serves as an essential tool for anyone needing a reliable rooftop support system. With its adjustable height and robust design, it effectively supports electrical conduits and other mechanical piping. Remember, it integrates perfectly with an electrical conduit base stand and a roof cable tray support for added convenience.
