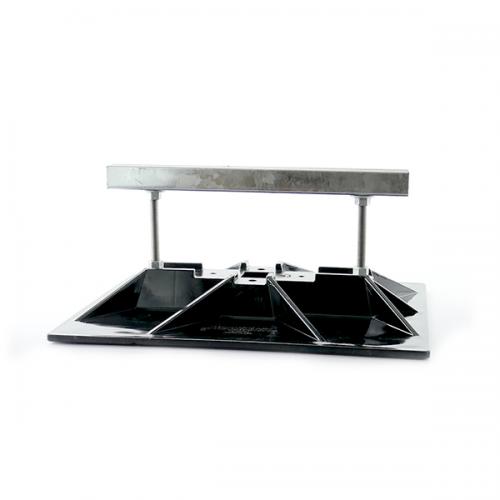

A pipestand with a strut and clamp pipe support system used for supporting roof mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Pipes rest on a 20″ length of channel which is mounted on the base. The pipes can then be fastened by using typical clamps locked to the strut. The pipe support base is made of polycarbonate resin and the strut is made of hot-dip galvanized steel.
|The deck base is 19" by 23″ and has a maximum channel length of 20″.|
Max Pipe Clearance
|Adjustable support height from 5.5" to 9.5"|
Max Load Weight
|Maximum load weight may not exceed 960 lbs. per pipestand.|
|Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load.|
