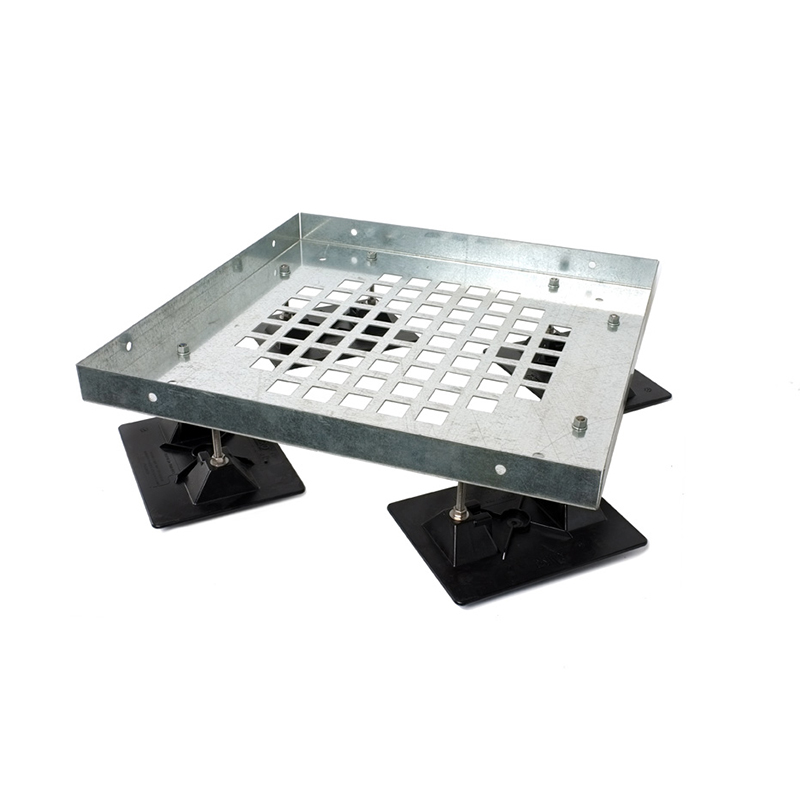

LD Mechanical Unit Support

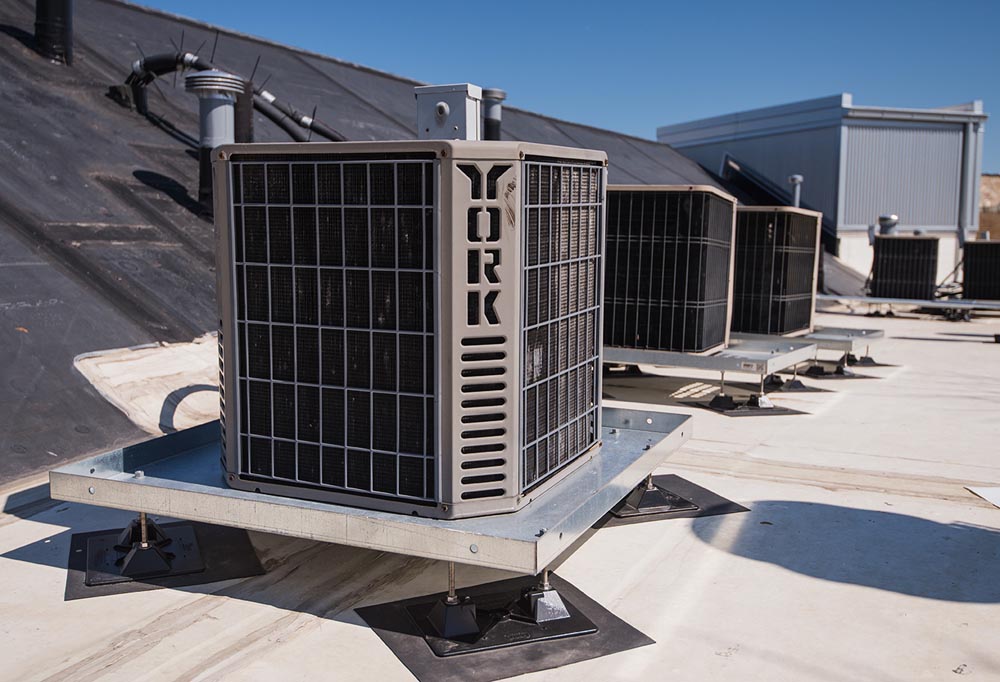

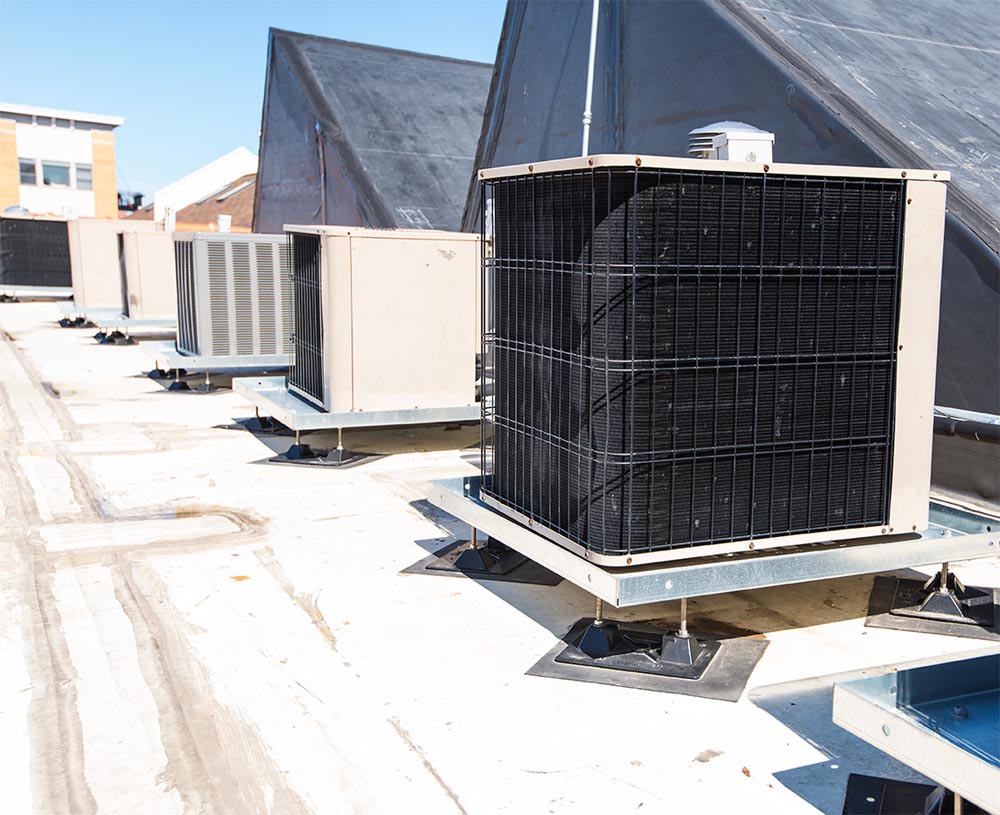

MIRO LD Mechanical Supports are a quick and easy solution to elevating small and light rooftop mechanical units. They are designed to support a unit 8″ off the roof, with a weight capacity of up to 200 lbs. They are available in several different dimensions to accommodate varying size units. May ship partially disassembled.

Standard sizes for the LD Mechanical Supports are:

24″ x 24″

30″ x 30″

20″ x 36″

36″ x 36″

MIRO also has the capacity to create custom LD Support sizes upon request if needed. Contact us for more information on custom sizing.

 Contact Your Rep to Buy

 Request a Quote


SKU: LD-Supports Category:


Base Material
The LD Support has standard sizes of: 24x24, 30x30, 20x36, and 36x36. Custom sizes can be made upon request.
Max Height Off Roof
All variations of the LD Mechanical support have a max height of 8" above the roof surface.
Max Load Weight
Maximum load weight may not exceed 200 lbs. per support.



24 x 24
