HD Mechanical Unit Support – Rail Only

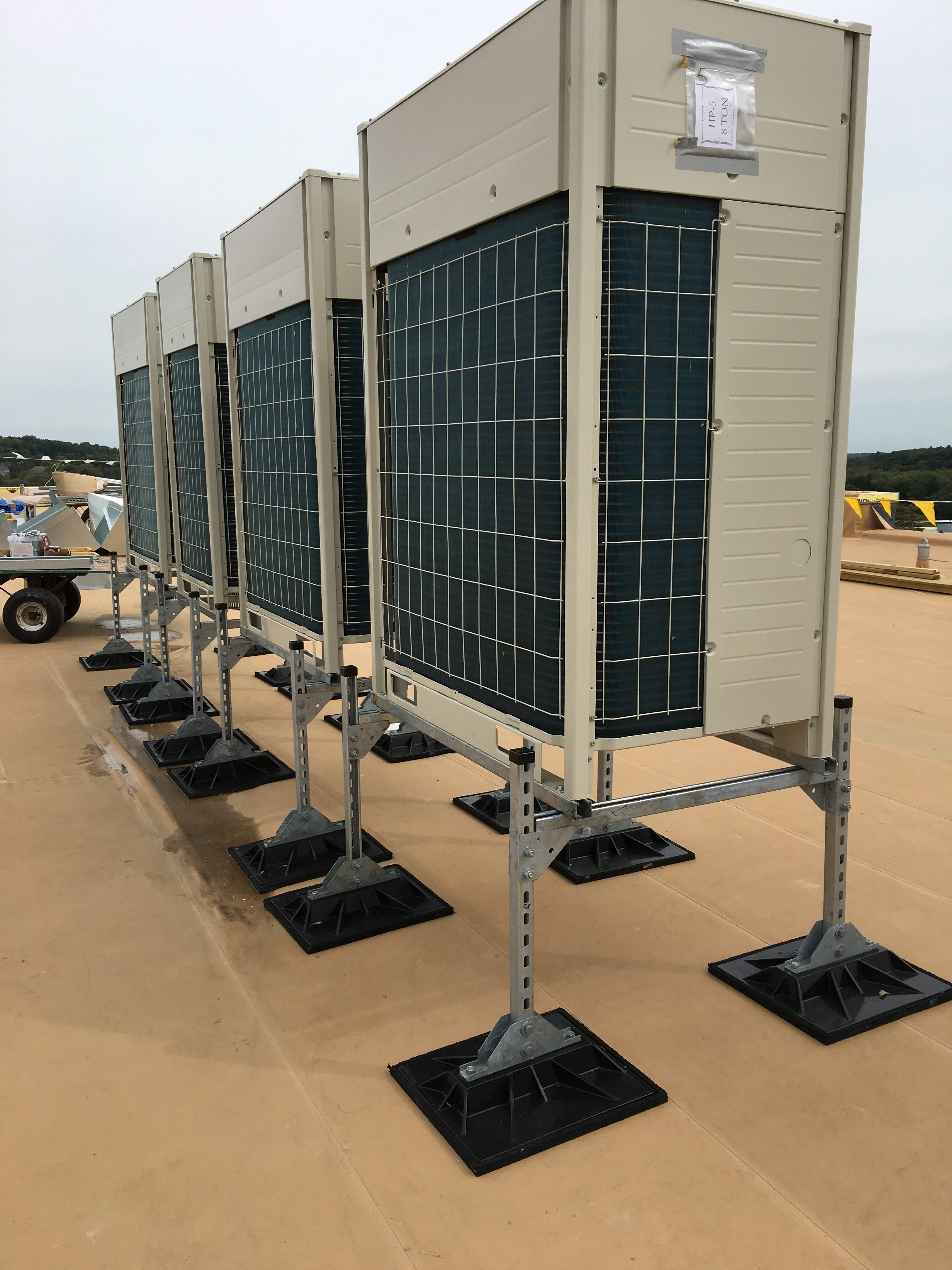

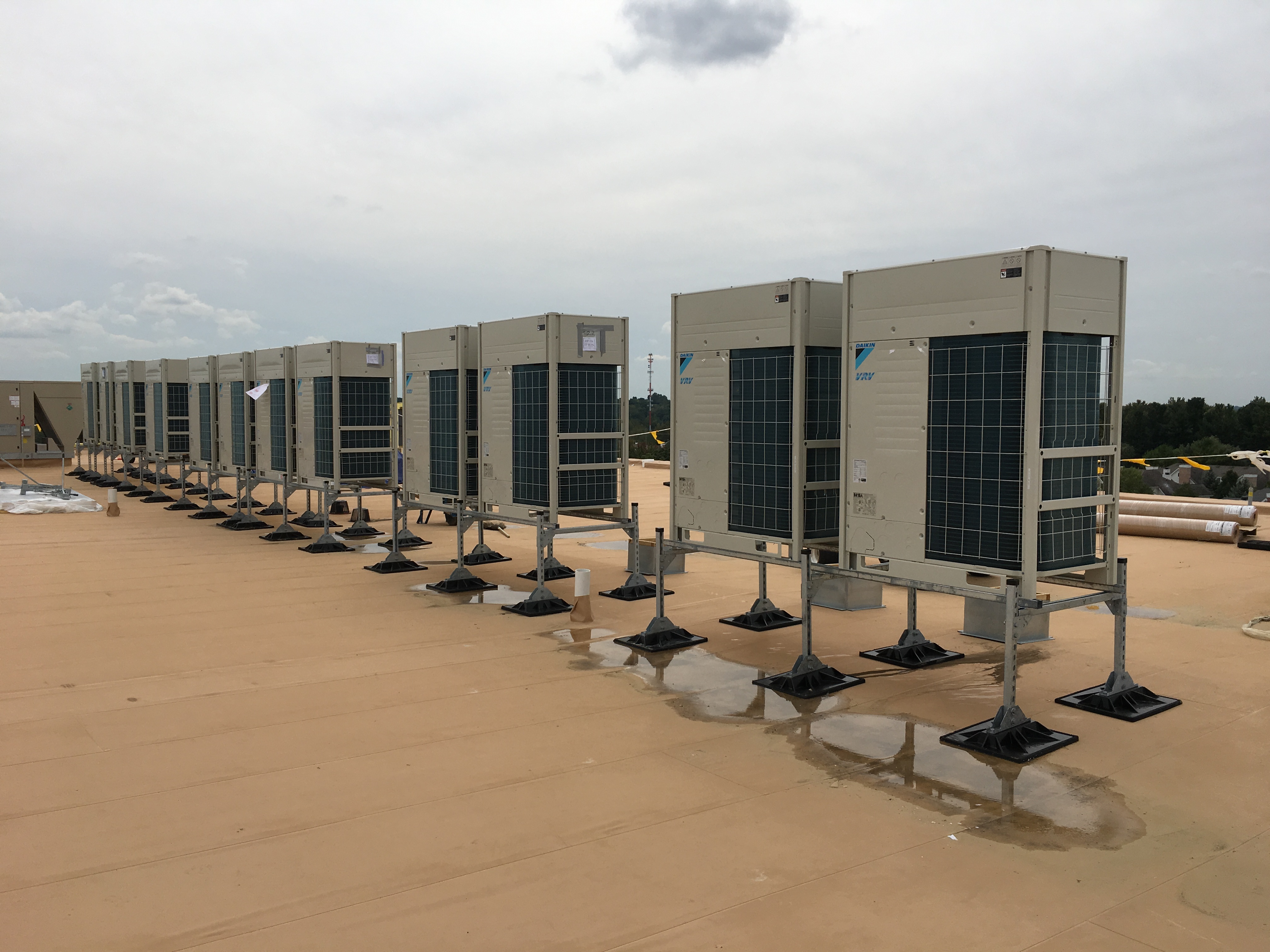

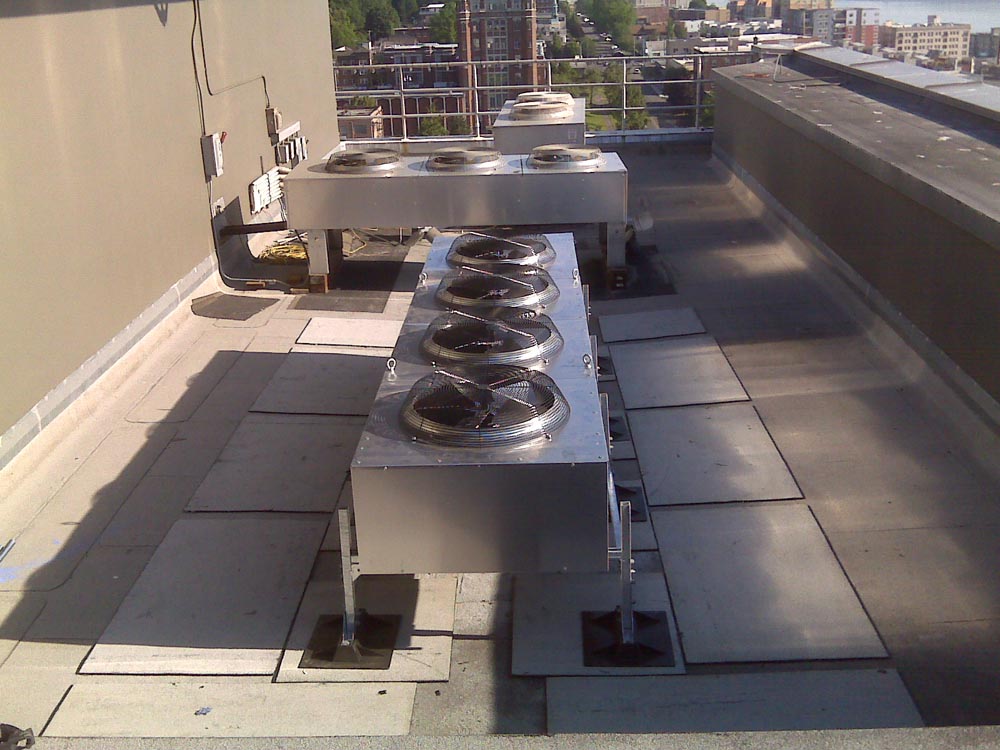

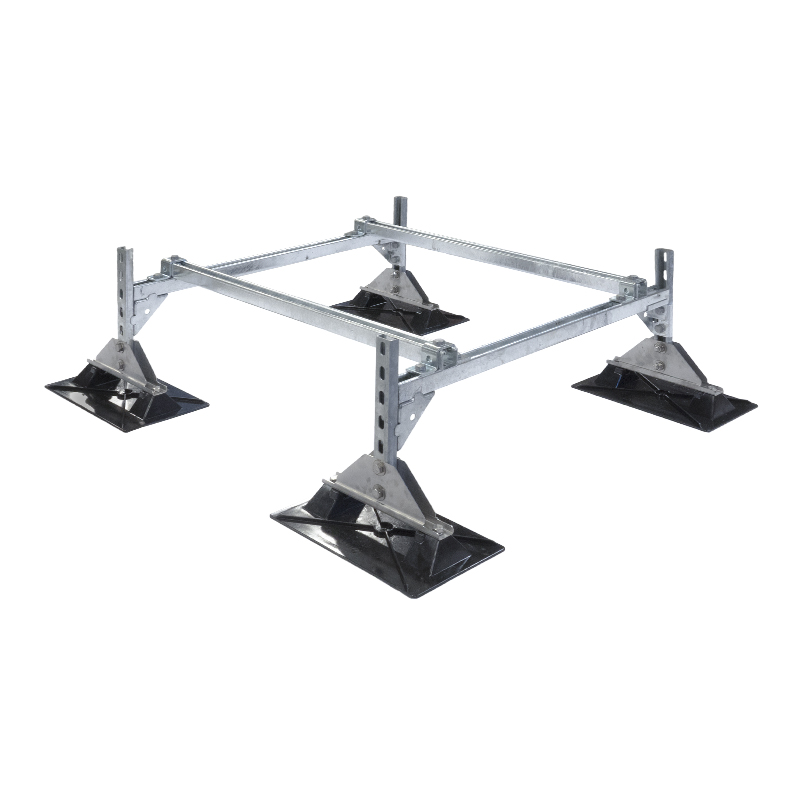

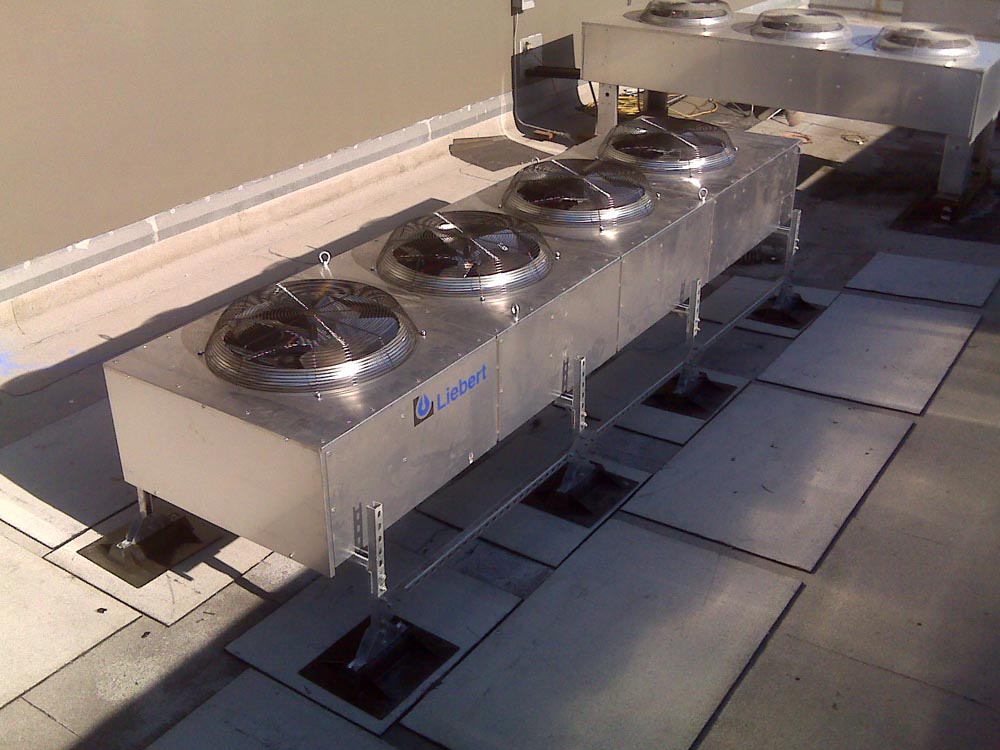

MIRO HD-Mechanical Supports are designed to elevate rooftop mechanical units, cabinets and other devices. The rail only configuration has (2) 1-5/8″ 12 ga. strut rails for mounting the equipment to. The supports are adjustable in height per the project requirements. All metal parts are hot-dip galvanized for outdoor weathering protection. The support bases are injection molded polycarbonate, and the support comes in two different sizes – 6HD (with 9×15″ bases) and 8HD (with 16×18″ bases), each with different weight capacities. Stainless steel and galvanized bases are also available. To get a quote, please fill out the HD support template e-mail it to to your local rep or to sales@miroind.com, or give us a call.

Contact Your Rep to Buy


SKU: HD-Supports-Rail Category:


Base Material
Custom size based on application
Max Height Off Roof
Custom height based on application
Max Load Weight
HD Mechanical Supports can be customized to support any weight required by a project



6HD Mechanical Support – Rail

Spec and Drawing Sheets (PDF)

Drawing (DWG)

8HD Mechanical Support – Rail

Spec and Drawing Sheets (PDF)

Drawing (DWG)

Revit files and more

Visit BIM objects
