4-RAH-10

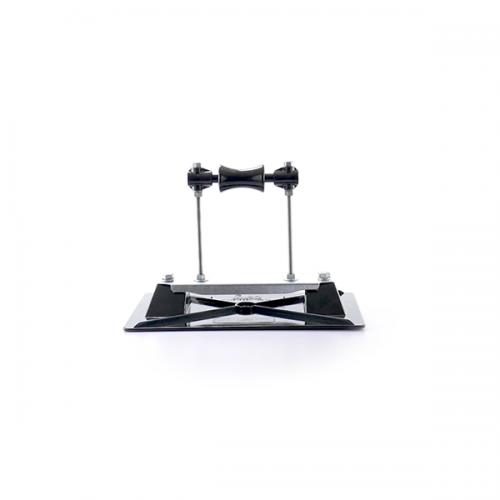

A “roller-bearing” pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating polycarbonate resin roller rod and roller. The pipe support base is made of polycarbonate resin, the supporting all-thread and all metal parts are made of stainless steel. Pipestand will accommodate up to 4.5″ (outside diameter) pipes.

Contact Your Rep to Buy

Previous model name: 4-RAH-7



SKU: 4-RAH-10 Category:

Description

Base Material
Polycarbonate
Size
The deck base is 9″ by 15.25" and the maximum cradle width is 4".
Max Pipe Size
4.5" outside diameter.
Max Pipe Clearance
Minimum clearance height of 4.5" and maximum clearance height of 9.5.
Max Load Weight
Maximum load weight may not exceed 335 lbs. per pipestand
Spacing
Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load.
