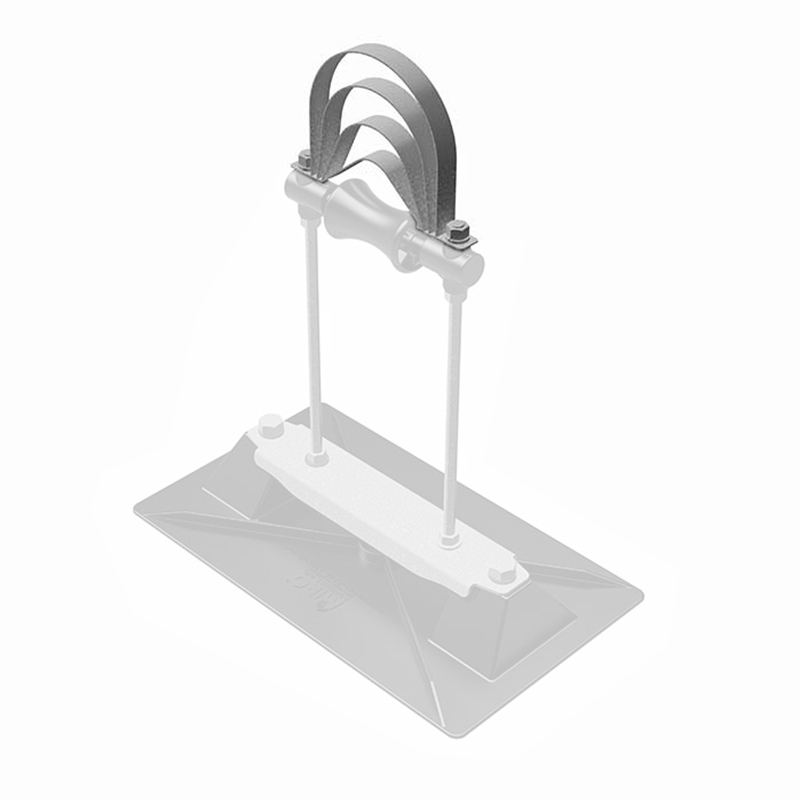

4-RAH Pipe Guide

MIRO Industries pipe guides are designed to attach to MIRO Industries pipe supports so as to prevent the pipe being displaced from the support. All pipe guides will ship separately and need to be installed on site. It is important to note that pipe straps should not be rigidly attached to the actual pipe that is placed in the pipestand, thus allowing for expansion and contraction to occur within the pipestand. Strap material is a .125 aluminum 5052 allow temper H32 ASTM B-209-0.

Contact Your Rep to Buy

SKU: 4-RAH Guide Category:

Description

Pipe Guide Material
16 gauge/0.051 aluminum 5052 alloy temper H32  ASTM B-209-01
Max Pipe Size
Accommodates up to a 4" std. pipe

Downloads

Spec and Drawing Sheets (PDF)

Drawing (DWG)

3D AutoCad

3D AutoCad
