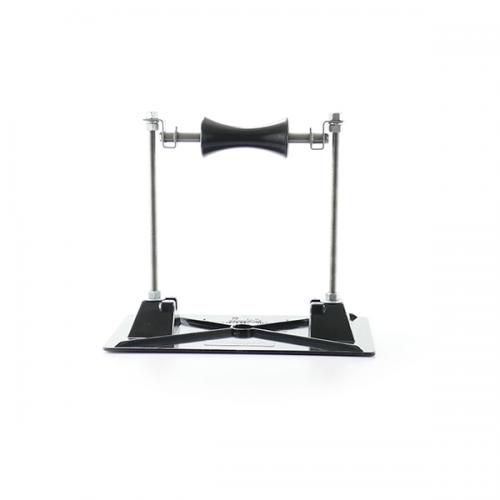

A “roller-bearing” pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating roller which is made of a stainless steel rod and a sturdy polycarbonate resin roller. The pipe support base is made of polycarbonate plastic and all metal parts are made of stainless steel. Pipestand will accommodate up to 6″ outside diameter pipes.

Contact Your Rep to Buy


SKU: 5-RAH-12 Category:


Base Material
The deck base is 9″ by 15.25" and the maximum cradle width is 9", but is designed to hold a maximum of 6" outer diameter pipe.
Max Pipe Size
6" outside diameter.
Max Pipe Clearance
Minimum clearance height of 4" and maximum clearance height of 12".
Max Load Weight
Maximum load weight may not exceed 335 lbs. per pipestand
Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load.
