Description
Base Material | Polycarbonate |
Size | The deck base is 10″ by 7.5" and the maximum cradle width is 3", but is designed to hold a maximum of 2" outer diameter pipe. |
Max Pipe Size | 2.5" outside diameter. |
Max Pipe Clearance | Maximum clearance height of 5". |
Max Load Weight | Maximum load weight may not exceed 140 lbs. (3.0 PSI) per pipestand |
Spacing | Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load. |

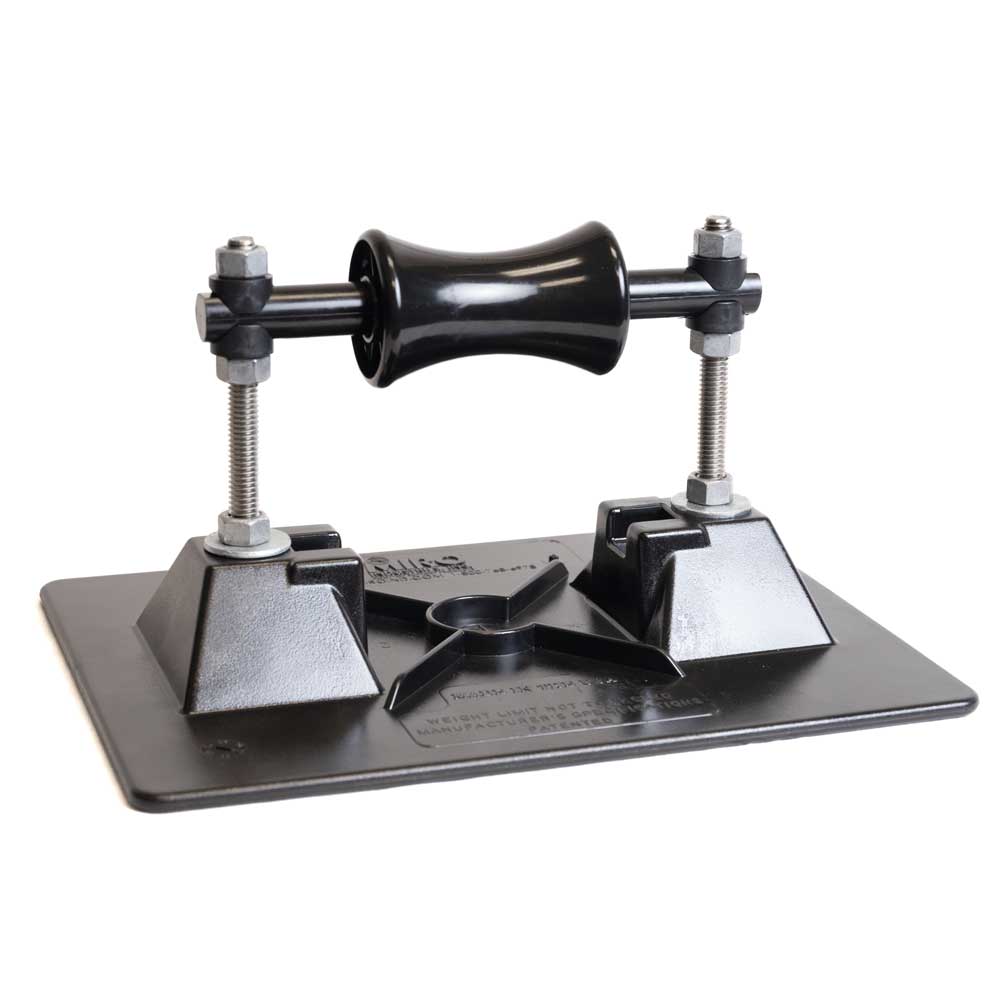

The 2-RAH-5 is a state-of-the-art adjustable roller pipe support specifically designed to accommodate roof-mounted applications. This versatile support is perfect for gas pipes, electrical conduits, solar piping, and other mechanical piping systems. Its unique design effectively absorbs thermal expansion and contraction, thereby preventing potential damage to the roof membrane.
Key Features
Optimized Design: The 2-RAH-5 is specifically designed for a 2-inch pipe, ensuring a secure fit. Additionally, it can accommodate a maximum pipe outer diameter (OD) of 2-1/2 inches when insulation is applied.
Adjustable Height: The adjustable roller pipe support is adjustable from its factory-set height of 5 inches down to a minimum height of 3-5/8 inches. This feature allows for flexibility in installation, ensuring it meets various project requirements.
Robust Load Capacity: With a maximum load capacity of 140 lbs., the 2-RAH-5 is engineered to handle significant weight. It is crucial, therefore, to ensure that each pipe support is properly elevated to evenly distribute weight across all support locations.
Lightweight Construction: Weighing only 1.35 lbs., this adjustable roller pipe support is not only easy to handle but also simple to install. Each case contains 12 units, with a total weight of 17 lbs. (Dimensional Weight: 14 lbs.).
Durable Materials: The axle, roller, and collar are made from self-lubricating polycarbonate resin, ensuring smooth operation. Furthermore, all other metal components are hot-dip galvanized for enhanced corrosion resistance.
Recommended Spacing: For optimal performance, the recommended spacing between supports should not exceed 10 feet, depending on the load.
The 2-RAH-5 adjustable roller pipe support is an essential solution for any roofing project requiring reliable and adjustable pipe support. Its combination of durability, load capacity, and ease of installation makes it a preferred choice among industry professionals.
