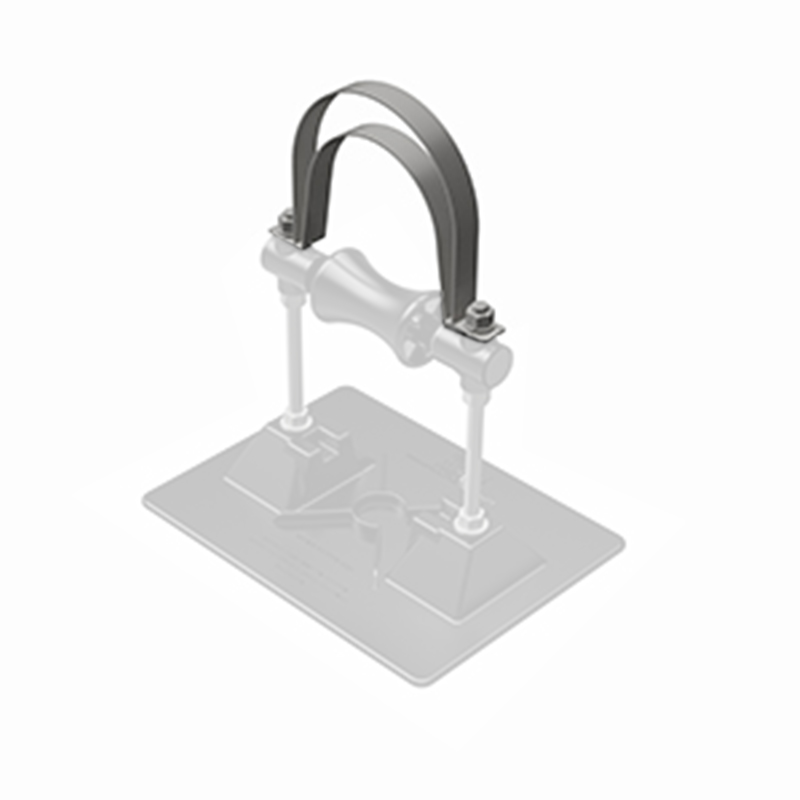

3-RAH Pipe Guide

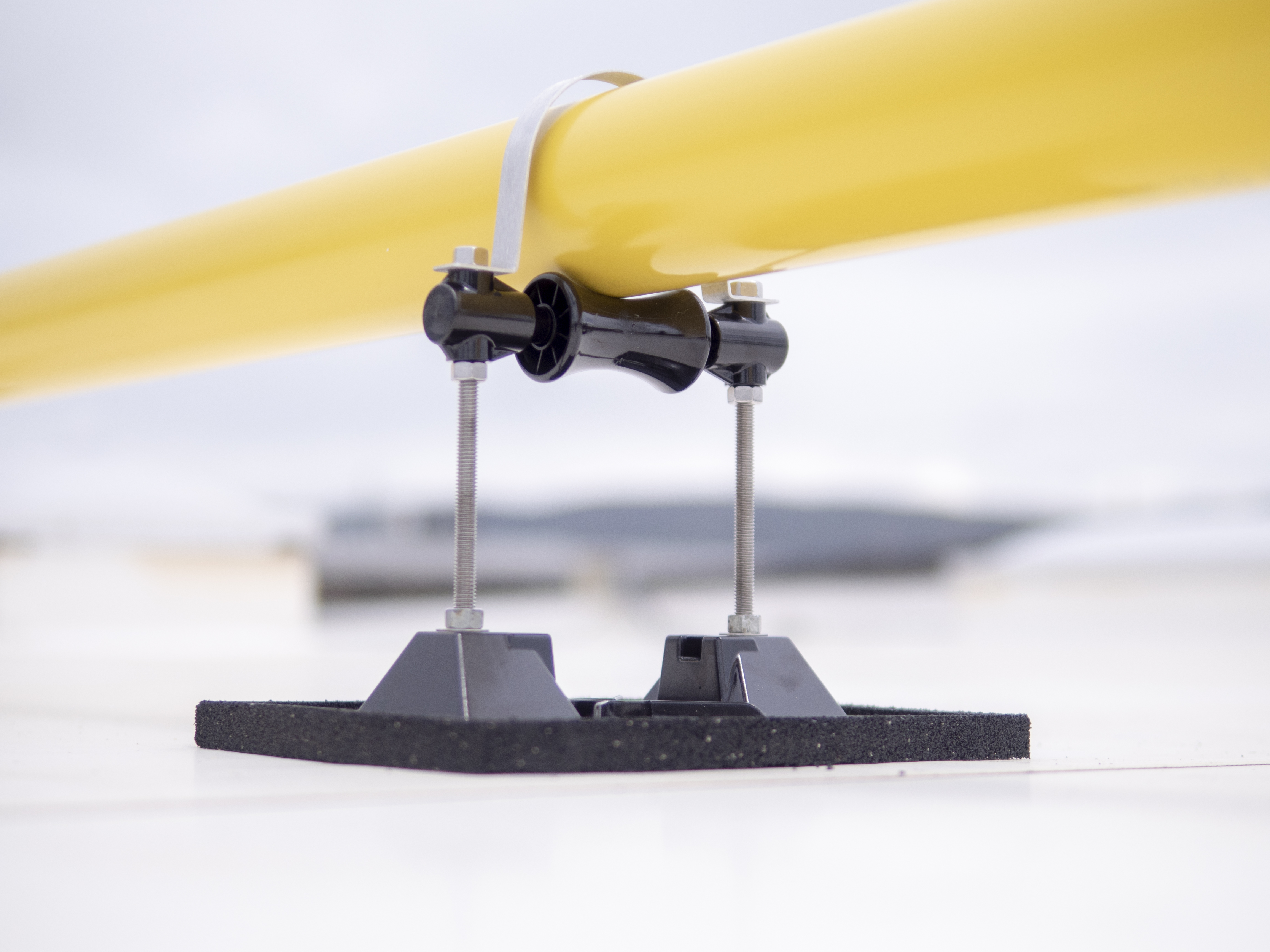

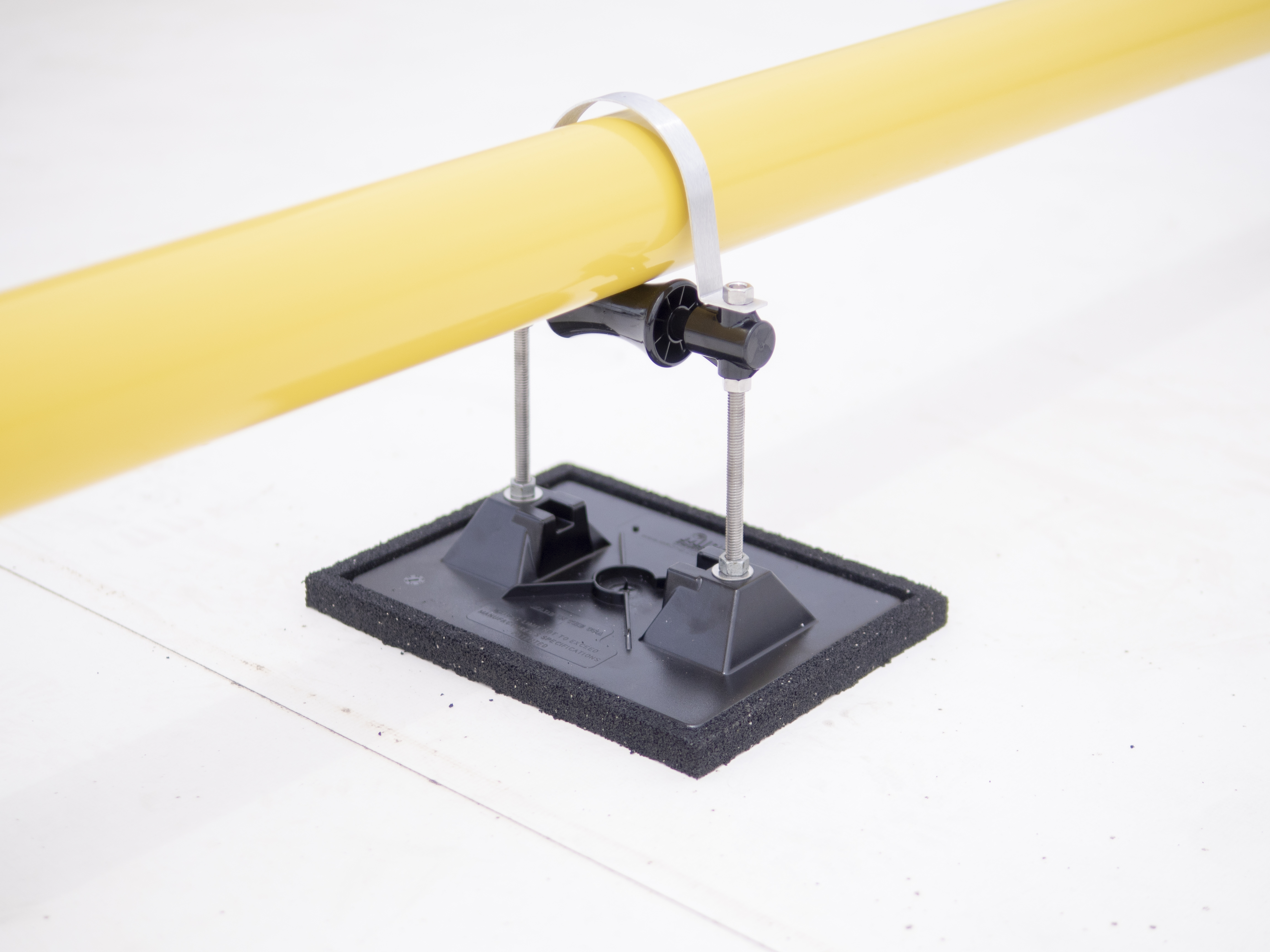

MIRO Industries pipe guides are designed to attach to MIRO Industries pipe supports so as to prevent the pipe being displaced from the support. All pipe guides will ship separately and need to be installed on site. It is important to note that pipe straps should not be rigidly attached to the actual pipe that is placed in the pipestand, thus allowing for expansion and contraction to occur within the pipestand. Strap material is a .125 aluminum 5052 allow temper H32 ASTM B-209-0. 4-RAH pipe guides can also be used for the 4-R by mounting a 3/8″ bolt down through the pre-punched holes in the strap into the 4-R base.

Contact your MIRO rep to buy

SKU: 3-RAH Guide Category:


Pipe Guide Material
16 gauge/0.051 aluminum 5052 alloy temper H32  ASTM B-209-01
Max Pipe Size
Accommodates up to a 3" std. pipe


Spec and Drawing Sheets (PDF)

Drawing (DWG)
