Description
Base Material | Polycarbonate |
Size | The deck base is 9″ by 15.25" and the maximum cradle width is 9", but is designed to hold a maximum of 6" outer diameter pipe. |
Max Pipe Size | 8.5" outside diameter. |
Max Pipe Clearance | Minimum clearance height of 4" and maximum clearance height of 8". |
Max Load Weight | Maximum load weight may not exceed 335 lbs. per pipestand |
Spacing | Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load. |

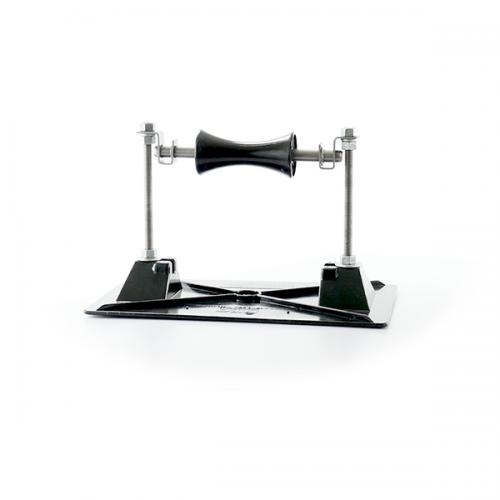

The 5-RAH-8 is a dependable pipe roll stand specifically designed for roof-mounted applications. This versatile support is perfect for gas pipes, electrical conduits, solar piping, and other mechanical piping systems. Importantly, its unique design effectively absorbs thermal expansion and contraction, which helps prevent damage to the roof membrane.
Key Features
Base Material: The pipe roll stand features a robust polycarbonate base that ensures durability and resistance to harsh weather conditions. Moreover, this lightweight material is ideal for various roofing types.
Deck Base Size: Additionally, the 5-RAH-8 pipe roll stand has a spacious deck base measuring 9 x 15.25 inches. This size provides excellent stability and support for larger piping systems.
Adjustable Height: The pipe clearance is adjustable from a maximum height of 8 inches down to a minimum height of 4 inches. This flexibility allows for easy customization based on project requirements.
Load Capacity: With a maximum load weight of 335 pounds per pipestand, the 5-RAH-8 is built to handle heavy loads. Therefore, it is crucial to ensure that each pipe support is properly elevated to evenly distribute weight across all locations.
Roller Material: The composite rubber roller of the pipe roll stand allows for smooth movement of the pipes, accommodating thermal expansion without binding. This design helps extend the life of both the support and the piping system.
Stainless Steel Components: The pipe roll stand includes stainless-steel all-thread, axle, and hardware, ensuring resistance to rust and long-lasting durability.
Recommended Spacing: For optimal performance, the recommended spacing between supports should not exceed 10 feet, depending on the load.
Overall, the 5-RAH-8 pipe roll stand is an essential solution for any roofing project that requires reliable and adjustable pipe support. Its combination of strength, load capacity, and easy installation makes it a preferred choice among industry professionals.
