10-RAH-18

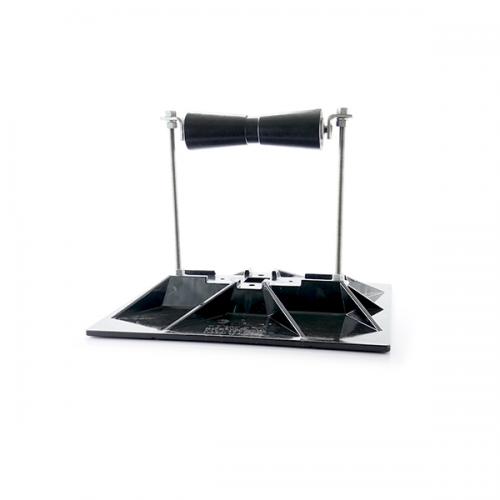

A “roller-bearing” pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a rubber roller and a stainless steel axle.

Contact Your Rep to Buy

Previous model name: 8-RAH-18



SKU: 10-RAH-18 Category:

Description

Base Material
Polycarbonate
Size
The deck base is 19″ by 23"
Max Pipe Size
12" outside diameter.
Max Pipe Clearance
Minimum clearance height of 6" and maximum clearance height of 18".
Max Load Weight
Maximum load weight may not exceed 803 lbs. per pipestand
Spacing
Manufacturer’s recommended spacing is not to exceed 8 foot centers depending upon the load.

Accessories

Downloads

Spec and Drawing Sheets (PDF)

Drawing (DWG)

Revit files and more

Visit BIM objects
