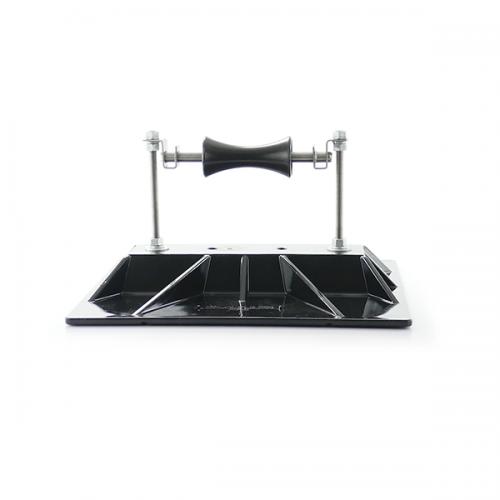

A “roller bearing” pipe support used to support roof mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating roller which is a 304 stainless steel rod and a polycarbonate resin roller. The pipe support base is made of sturdy Polycarbonate resin, the roller is polycarbonate and all metal parts are made of stainless steel. Pipestand will accommodate up 8.5″ outside diameter pipes.

Contact Your Rep to Buy

Previous model name: 6-RAH-7


SKU: 6-RAH-8 Category:


Base Material
The deck is 16″ x 18″ and has a maximum cradle width of 8.5″.
Max Pipe Size
8.5" outside diameter.
Max Pipe Clearance
Minimum clearance height of 4.375" and maximum clearance height of 8".
Max Load Weight
Maximum load weight may not exceed 578 lbs. per pipestand
Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load.



Polycarbonate Base

Spec and Drawing Sheets (PDF)

Drawing (DWG)

Stainless Steel Base

Spec and Drawing Sheets (PDF)

Drawing (DWG)

Revit files and more

Visit BIM objects
