Crossover Kits

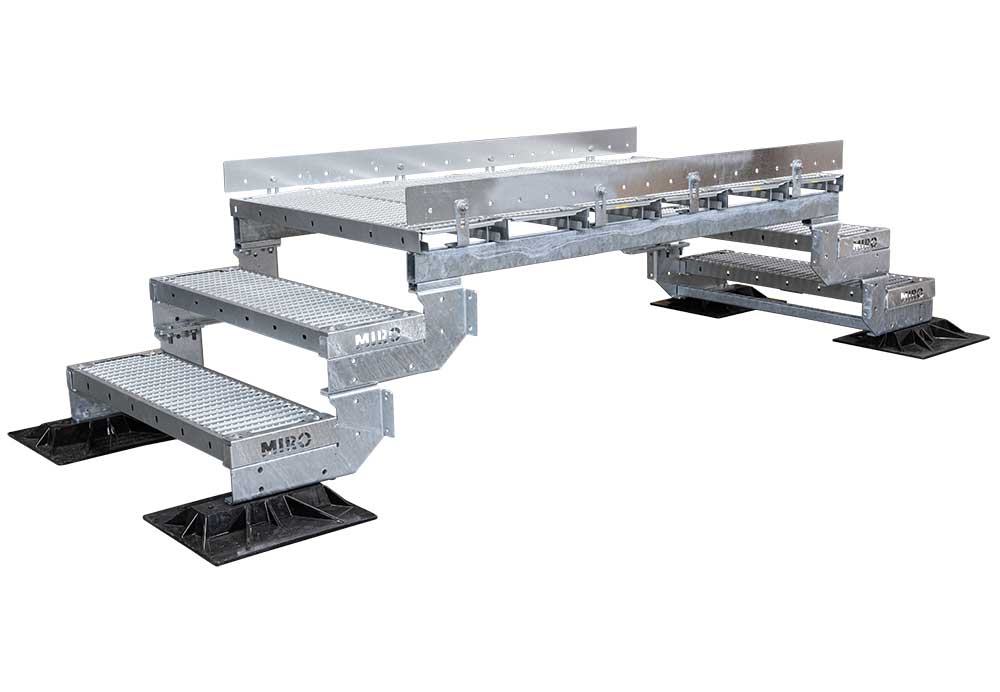

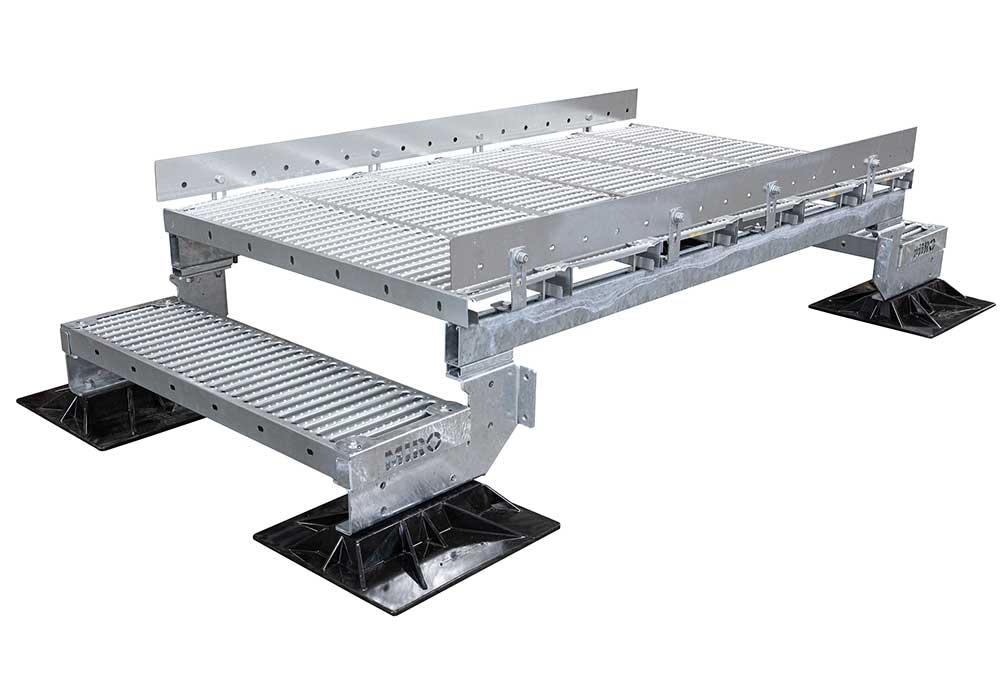

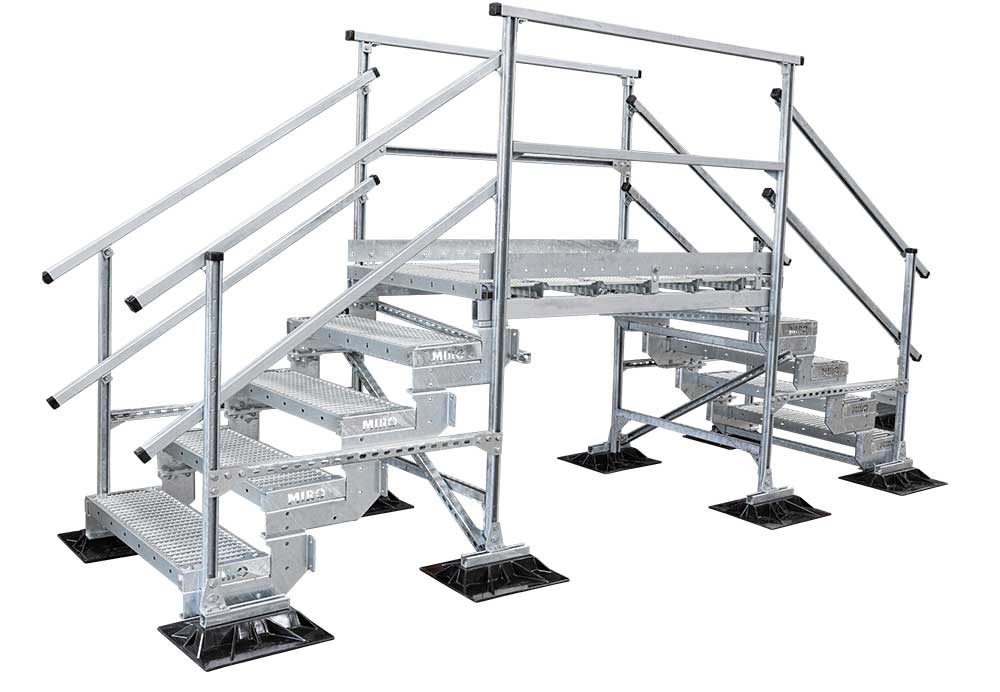

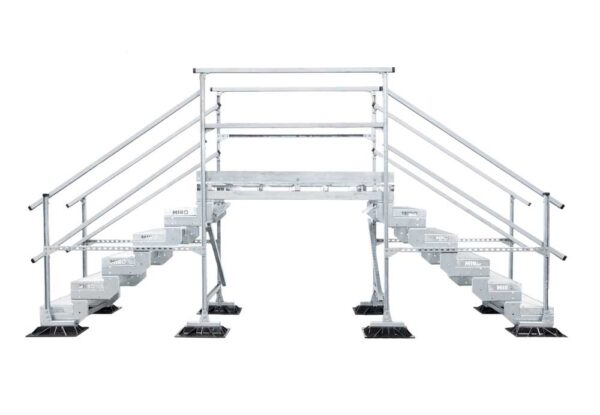

Crossover Kits are a selection of pre-designed crossovers that are easy to order, easy to assemble, and that accommodate a large majority of situations where a crossover stair system is needed. They are available in four different heights and have two different platform lengths – 48″ or 60″. For additional height or length please see our standard Crossovers.

For crossover applications requiring high wind & seismic design, please visit our Wind & Seismic section.

Contact Your Rep to Buy



SKU: Crossover-Kits Category:

Description

Base Material
Polycarbonate - Stainless steel or hop-dipped-galvanized bases available.
Size
Deck bases are typically 16" x 18". Platform lengths are either 48" or 60".
Dimensions 2-CO-48
22" height clearance, 116.5" overall length
Dimensions 3-CO-48
31.5" height clearance, 140.5" overall length
Dimensions 4-CO-48
41" height clearance, 160.5" overall length
Dimensions 5-CO-48
50.5" height clearance, 187.5" overall length
Riser Height
9.5" on all models
Max Load Weight
All access or service systems are designed to meet loading criteria per ASCE7-10 or OSHA regulations.
