36-Base Strut-5

A pipestand with a strut and clamp pipe support system used for supporting roof mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Pipes rest on a 24″ length of channel which is mounted on the bases. The pipes can then be fastened by using typical clamps locked to the strut. The pipe support base is made of polycarbonate resin and the strut is made of hot-dip galvanized steel.

Contact Your Rep to Buy



SKU: 36-BS-5 Category:

Description

Base Material
Polycarbonate
Size

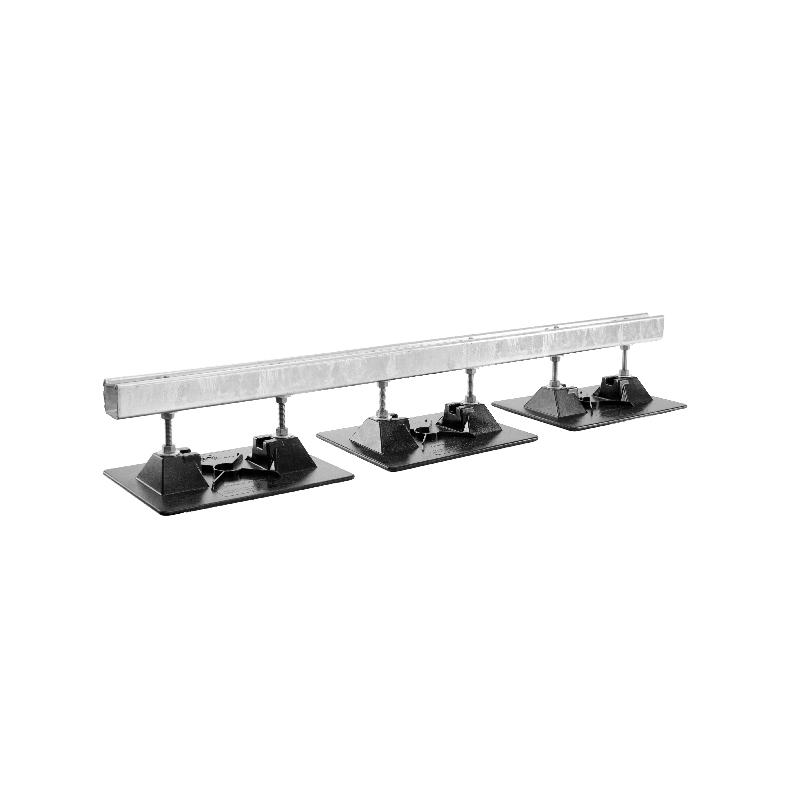

The support consists of (3) 7" by 10" bases with a 36" length of channel.
Max Pipe Clearance
Adjustable support height from 4.125" to 5.5"
Max Load Weight
Maximum load weight may not exceed 172.5 lbs/ft.
Spacing
Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load.
