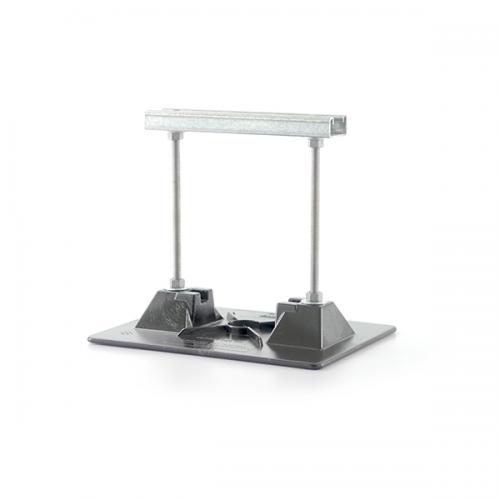

8-Base Strut-8


A pipe support with “strut” used to support roof-mounted electrical conduit, solar piping, gas pipes, and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a strut system which is made of hot-dip galvanized steel. The pipe support base is made of polycarbonate resin, and all other metal parts are made of hot-dip galvanized or stainless steel.

Contact Your Rep to Buy

Previous model name: 2.5-CS-7



SKU: 8-BS-8 Category:

Description

Base Material
Polycarbonate | Stainless Steel Available
Size
The deck base is 7.5″ by 10″ and the strut is 1 5/8″ by 13/16″ strut and 8″ long.
Max Pipe Size
2.5″ inside diameter and 3″ outside diameter.
Max Pipe Clearance
Maximum pipe clearance of 8.875″.
Max Load Weight
Maximum load weight may not exceed 172 lbs. per pipestand
Spacing
Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load.

Accessories

Downloads

Polycarbonate Base

Spec and Drawing Sheets (PDF)

Drawing (DWG)

Stainless Steel Base

Spec and Drawing Sheets (PDF)

Drawing (DWG)

Revit files and more

Visit BIM objects
