10-DS

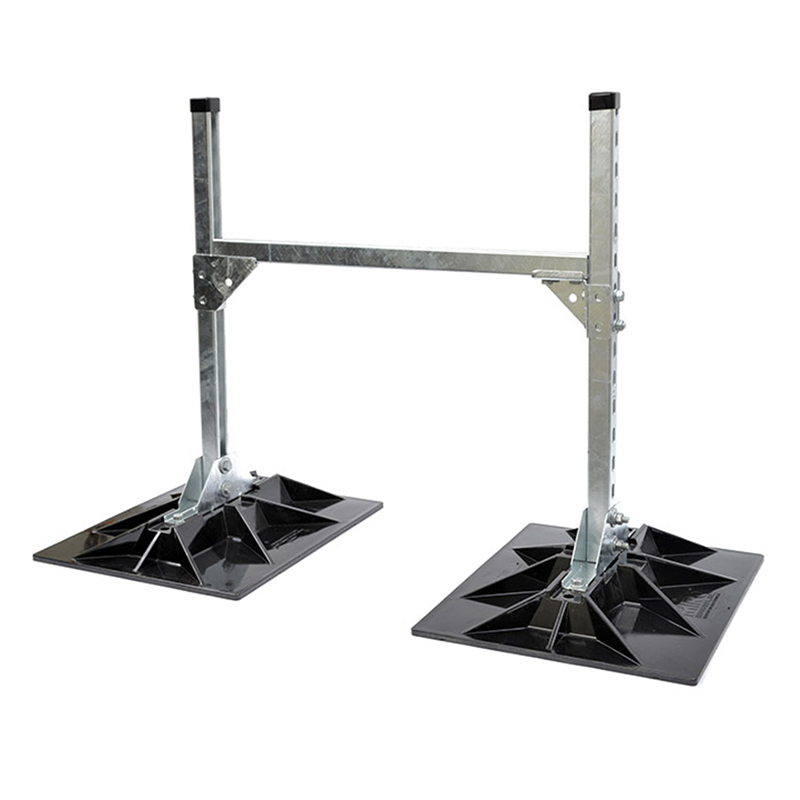

The 10-DS is a frame constructed of strut and MIRO’s patented bases to support single or multiple tiers of duct, pipe, cable trays, and more. Duct rests on a 1-5/8″ x 1-5/8″ length of channel strut, which is adjustable up and down using the channel nuts in the corner brackets. The 10-DS is available in an open configuration or can be made to enclose the duct on the bottom and the top. All 10-DS supports are job-specific, so their size can be made to fit any duct size that your project requires. For pricing, please fill out a quote template and submit it to your local Sales Representative. You will need the following information:

  1. Dimensions of duct
  2. Clearance height above the roof
  3. Total footage of duct
  4. Insulation size (if any)
  5. Does the duct need to be enclosed?

For duct support applications requiring high wind & seismic design, please visit our Wind & Seismic section.

 Contact Your Rep to Buy

Download Quote Template

 Request a Quote

SKU: 10-DS Category:

Description

Base Material
Polycarbonate is standard. Stainless steel is also available.
Size
The deck base is 19" x 23"
Max Pipe Clearance
Minimum clearance height of 14", maximum height depends on project requirements.
Max Load Weight
Maximum loading from any MIRO base to the finished roof surface is not to exceed 3.0 psi unless specifically allowed otherwise in project specifications. Deflection in the horizontal header bar is not to exceed the span length divided by 360 or 1/8"
Spacing
Manufacturer’s recommended spacing is not to exceed 8 foot centers depending upon the load.

Accessories

Downloads

Polycarbonate Base

Spec and Drawing Sheets (PDF)

Drawing (DWG)

Quote Template

Duct Support Quote Template

Revit files and more

Visit BIM objects
