Temperature Tango: The Dynamic of Expansion and Contraction

When it comes to rooftop pipe supports, understanding thermal expansion and contraction is crucial. These reactions, driven by temperature changes, can significantly impact the integrity and functionality of piping systems. Let’s dive into the fascinating world of expansion and contraction and discover the crucial role rooftop pipe supports have in ensuring a safe and efficient system that will protect the roof.

Thermal expansion occurs when materials expand upon heating. As the temperature rises, the particles within a material gain kinetic energy, causing them to move more and occupy more space. Conversely, thermal contraction happens when materials cool down, lose kinetic energy, and the particles move less, taking up less space.

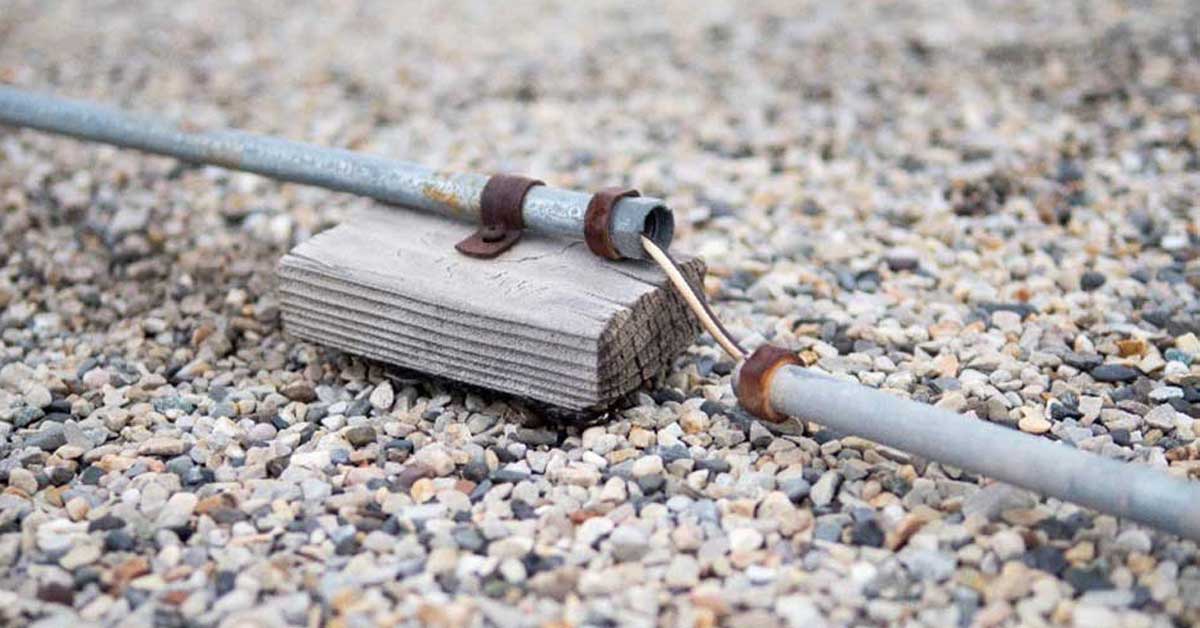

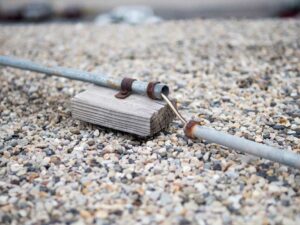

Rooftop pipe supports of any kind are intended to hold and stabilize pipes that transport various fluids, including water, gas, and chemicals. On a rooftop, these pipes are often exposed to fluctuating temperatures, which can cause them to expand and contract. Using wood or other static blocks, pipe movement is transferred to the roof membrane causing damage over time. Without choosing the proper support, this movement can lead to several issues:

• PROBLEM
  • Stress on pipe joints: As pipes expand and contract, they can exert stress on joints and connections, potentially leading to leaks or breaks.

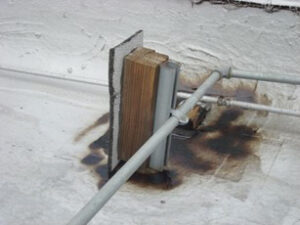

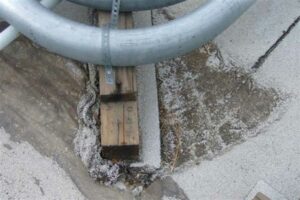

  • Structural Damage: Continuous expansion and contraction transferred to the roof membrane can weaken the structural integrity of the rooftop and the building itself.
  • Operational Efficiency: Unmanaged thermal movement can disrupt the flow of fluids, affecting the efficiency of the system.

The use of engineered rooftop pipe supports will protect the roof by allowing pipes to move without transferring that movement to the roof.

• SOLUTION

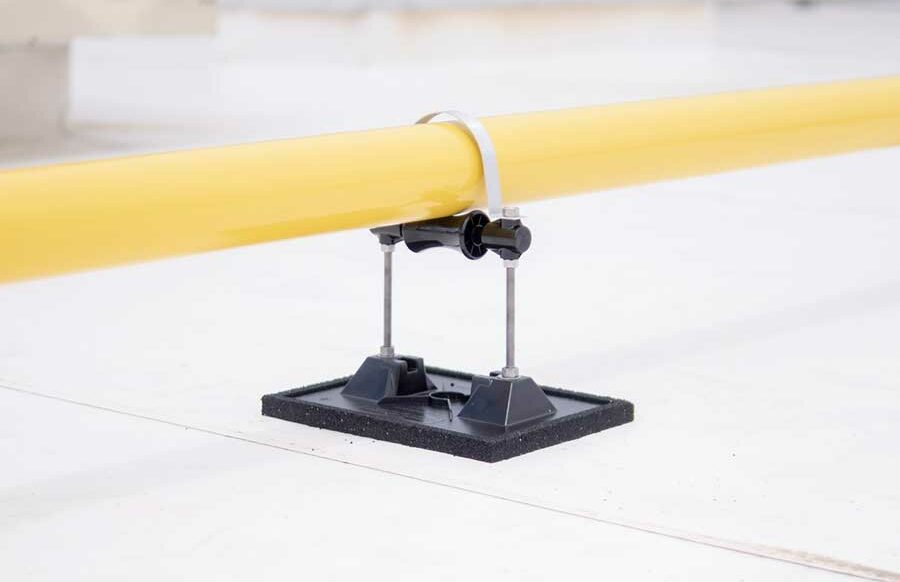

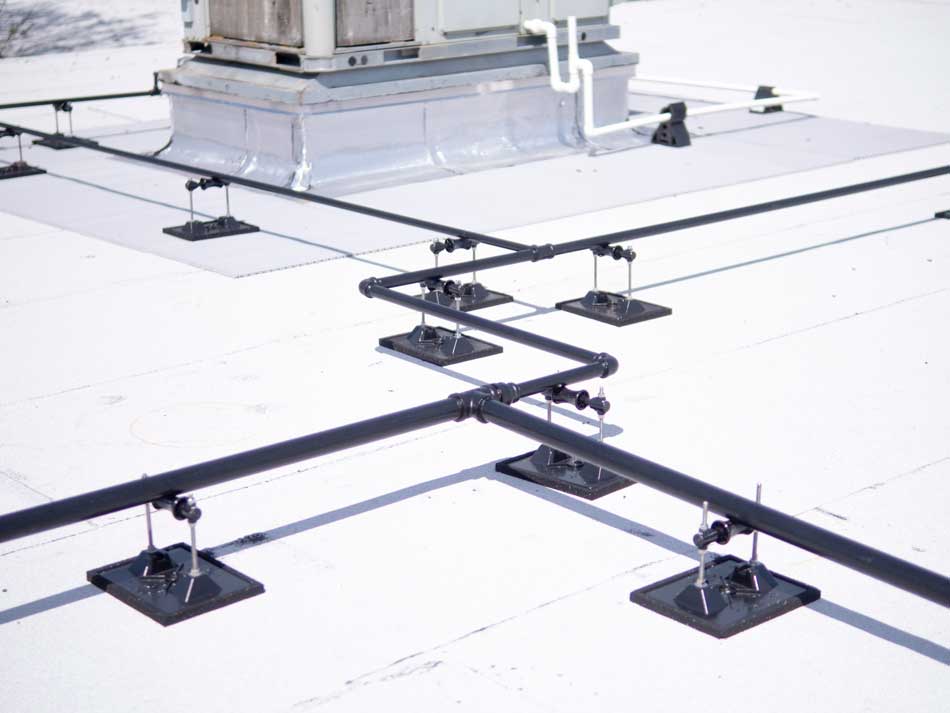

  • Roller Supports: These supports protect the roof by allowing controlled movement of the pipes, accommodating expansion and contraction without causing damage to the roof.
  • Proper Spacing: This is a key part in the specially designed components that absorb thermal movement, preventing stress on the pipes, the roof, and supports.
  • Proper Design and Material Selection: Using designs and materials that allow for thermal expansion and contraction ensures that pipes and supports expand and contract smoothly. Typical steel rollers seize up after being exposed to the elements. That’s why MIRO uses their self-lubricating roller system to ensure we are always “rolling” with the elements, backed with a limited 20-year warranty.

Pipes of any type on a rooftop can experience significant temperature changes and movement. When it comes to running pipe and equipment on a rooftop, choosing supports that are designed to accommodate thermal expansion and contraction is essential for the longevity and efficiency of rooftop piping systems, and will help avoid unnecessary and expensive repairs.

By incorporating roller supports, proper spacing, and selecting appropriate materials, you can ensure that these systems withstand the temperature tango without missing a beat. Reach out to a MIRO consultant today to discuss rooftop pipe support options for your specific job application.
