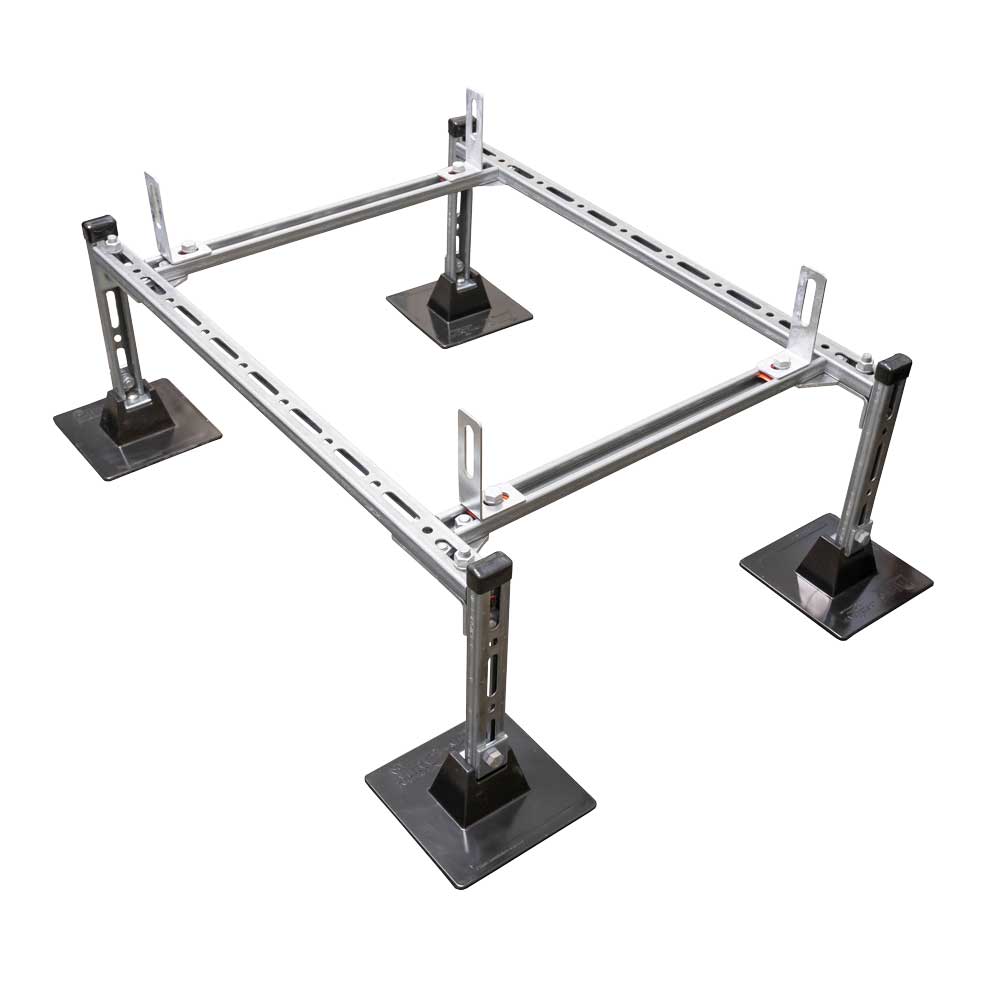

Mini Split Rail Support
Our Uniflex Mini Split Rail support is an economical option to support mini-splits condensers and heat pumps on the roof or on any surface. It supports a variety of sizes, is easy to install, and is fully adjustable.
To get a quote, contact your local rep, email us at email@example.com, or give us a call at (801) 975-9993.
- Designed to support Mini-Split condenser units.
- Designed for height, width, and span adjustability for a wide range of Mini-Split Units.
- Frame material is 14 gauge Hilti Channel (7/8×1-5/8) with a zinc-magnesium finish for outdoor use.
- Base material is polycarbonate with carbon black for UV resistance.
- Hardware and brackets are either hot-dip galvanized or electro-galvanized
- Support is designed for gravity loading. Additional wind and/or seismic tie downs and engineering provided upon request.
- Optimized load of 3.0 PSI to roof is approximately 300LBS. Ultimate load capacity is not tested.
2 year limited warranty
|Adjustable from 18” wide and 29-1/2” long and smaller|
Max Height Off Roof
|6” min to 12” max|
Max Load Weight
|Optimized load of 3.0 PSI to roof is approximately 300LBS. Ultimate load capacity is not tested.|
