6-DSA

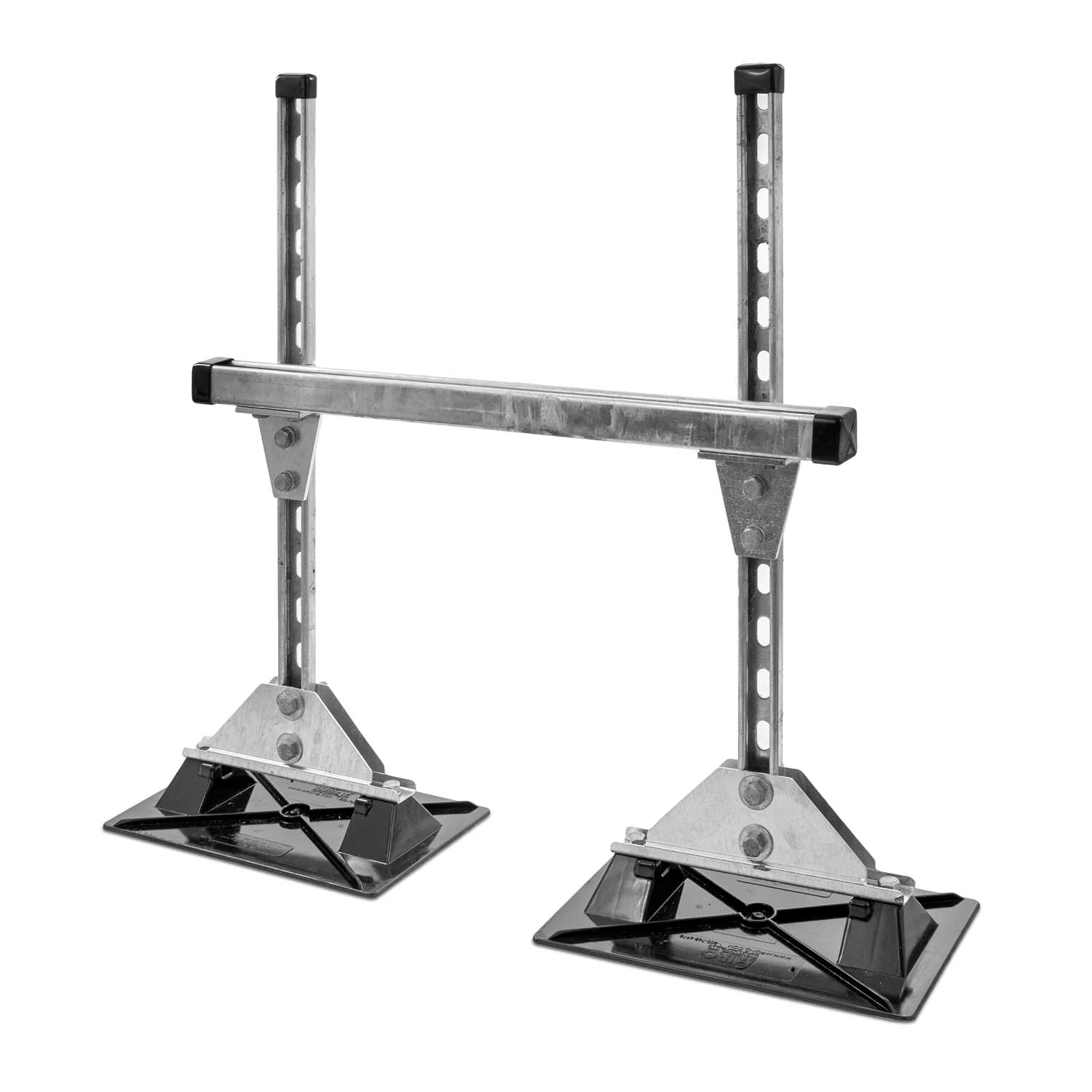

A frame used to support duct or various utilities on flat roofs. Unique design allows a sturdy support without penterating or causing damage to the roof membrane. The 6-DSA model is manufactured with 12 gauge 1-5/8″ x 1-5/8″ slotted strut for maximum adjustability in length and height.

Contact Your Rep to Buy

Description

Base Material	Polycarbonate
Size	The deck base is 9″ by 15.25"
Width	22" max, 16" min
Max Clearance	Adjustable height from 10" to 24" above roof
Max Allowable Uniform Distributed Load	Span: 16 in - Load: 200 lbs./ft. Span: 18 in - Load: 178 lbs./ft. Span: 20 in - Load: 160 lbs./ft. Span: 22 in - Load: 145 lbs./ft.
Max Allowable Concentrated Load At Center	267 lbs.
Spacing	Manufacturer’s recommended spacing is not to exceed 8 foot centers depending upon the load.

The 6-DSA is a versatile support system designed specifically for rooftop applications. Duct Roof Supports are essential for effective installations, and this adjustable frame is perfect for holding single or stacked ductwork. Additionally, it supports cable trays and other rooftop equipment. Its smart design allows for easy height adjustments on-site, helping customers, contractors, and building owners save time and money.

Constructed with a strong frame, the 6-DSA includes at least two sturdy bases. These bases are made from high-quality materials like polycarbonate plastic or galvanized steel. The vertical strut legs and horizontal strut header provide excellent stability, making the 6-DSA suitable for various project needs. For those seeking reliable Duct Roof Supports, the 6-DSA is a great solution.

Additionally, the 6-DSA can be used on roofs with slopes up to 2 vertical units and 12 horizontal units. This is approximately a 9-degree slope. This feature is crucial for ensuring proper drainage and preventing water from pooling. To further assist with drainage, the design includes drainage ports.

The frame system of the duct roof support is designed to keep the duct or utility system directly above the frame. This prevents any binding during operation. It allows for some side-to-side movement of the supported system, enhancing overall performance. The gently rounded base helps prevent damage to the roof membrane, keeping it safe from harm.

Furthermore, the 6-DSA works well with all types of decking and common roofing materials. For heavier loads, it’s advisable to use a MIRO Support Pad. Other protective pads can also safeguard the roof.

The 6-DSA rooftop support is an excellent choice for Duct Roof Supports. Its combination of strength, easy installation, and protective design makes it a top pick for professionals.
