8-Base Strut-2

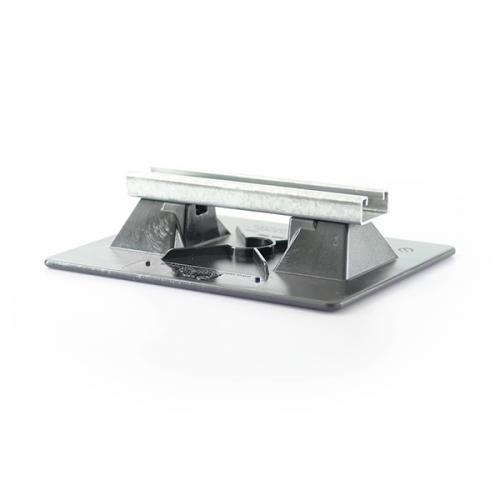

A pipe support with “strut” used to support roof-mounted electrical conduit, solar piping, gas pipes, and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a strut system which is made of hot-dip galvanized steel. The pipe support base is made of pPipestand will accommodate up to 2 1/2″ pipe (inside diameter) or up to 3″ (outside diameter) pipes.

Contact Your Rep to Buy

Previous model name: 2.5-CS-2



SKU: 8-BS-2 Category:

Description

Base Material
Polycarbonate
Size
The deck base is 7.5″ by 10″ and the strut is 1 5/8″ by 13/16″ strut and 8″ long.
Max Pipe Size
2.5″ inside diameter and 3″ outside diameter.
Max Pipe Clearance
Maximum pipe clearance of 2.5″.
Max Load Weight
Maximum load weight may not exceed 172 lbs. per pipestand
Spacing
Manufacturer’s recommended spacing is not to exceed 10 foot centers depending upon the load.
