Model 1.5

A pipe stand that will accommodate up to 1.5″ ID or smaller pipe.

Downloads

  1. Spec & Drawing Sheets (PDF)
  2. Spec & Data Sheets (PDF)
  3. Drawings (REVIT)
  4. Drawings (DWG)
SKU: 1.5. Category: .

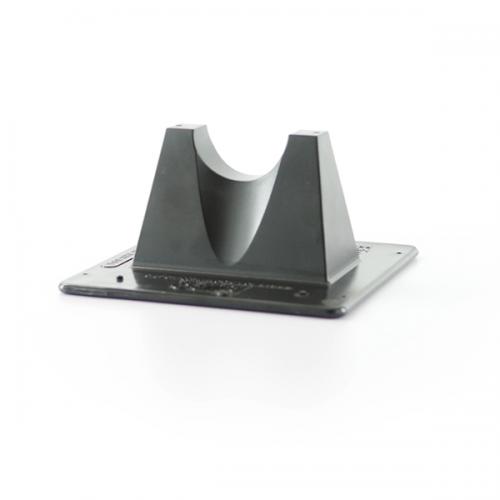

A pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest in a ‘U’ shaped cradle situated in a polycarbonate resin seat. Each pipe stand will accommodate up to 1.5″ inside diameter pipes. The maximum outside diameter of pipe which can be cradled in the Model 1.5 support is 1.9″.


Base Material:

Polycarbonate



Size:

The deck base is 6″ square, the stacking platform is 2″ high, the top of the “U” cradle is 3″ high, and the maximum inside width of the cradle is 1.95″.



Max Pipe Size:

1-1/2″ inside diameter and 1-9/10″ outside diameter.



Max Pipe Clearance:

Pipes supported one pipestand high will have a clearance of 2″ over the roof.



Max Load Weight:

Maximum load weight may not exceed 48 lbs. per pipestand.



Spacing:

Manufacturer’s recommended spacing is not to exceed 10 feet centers depending upon the load.

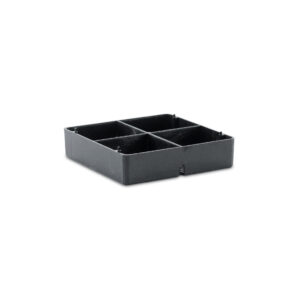

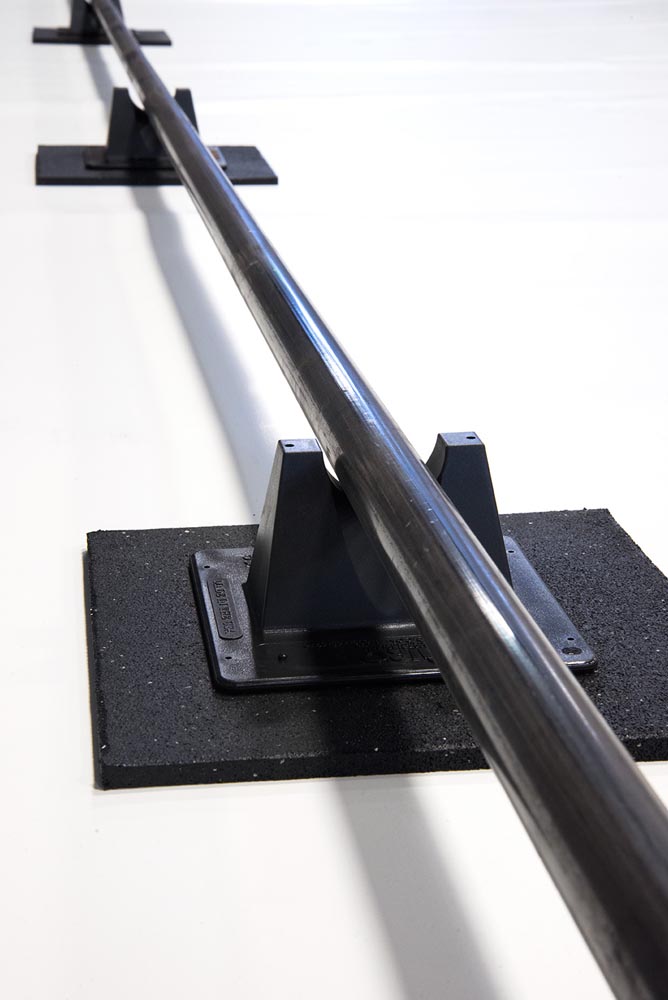

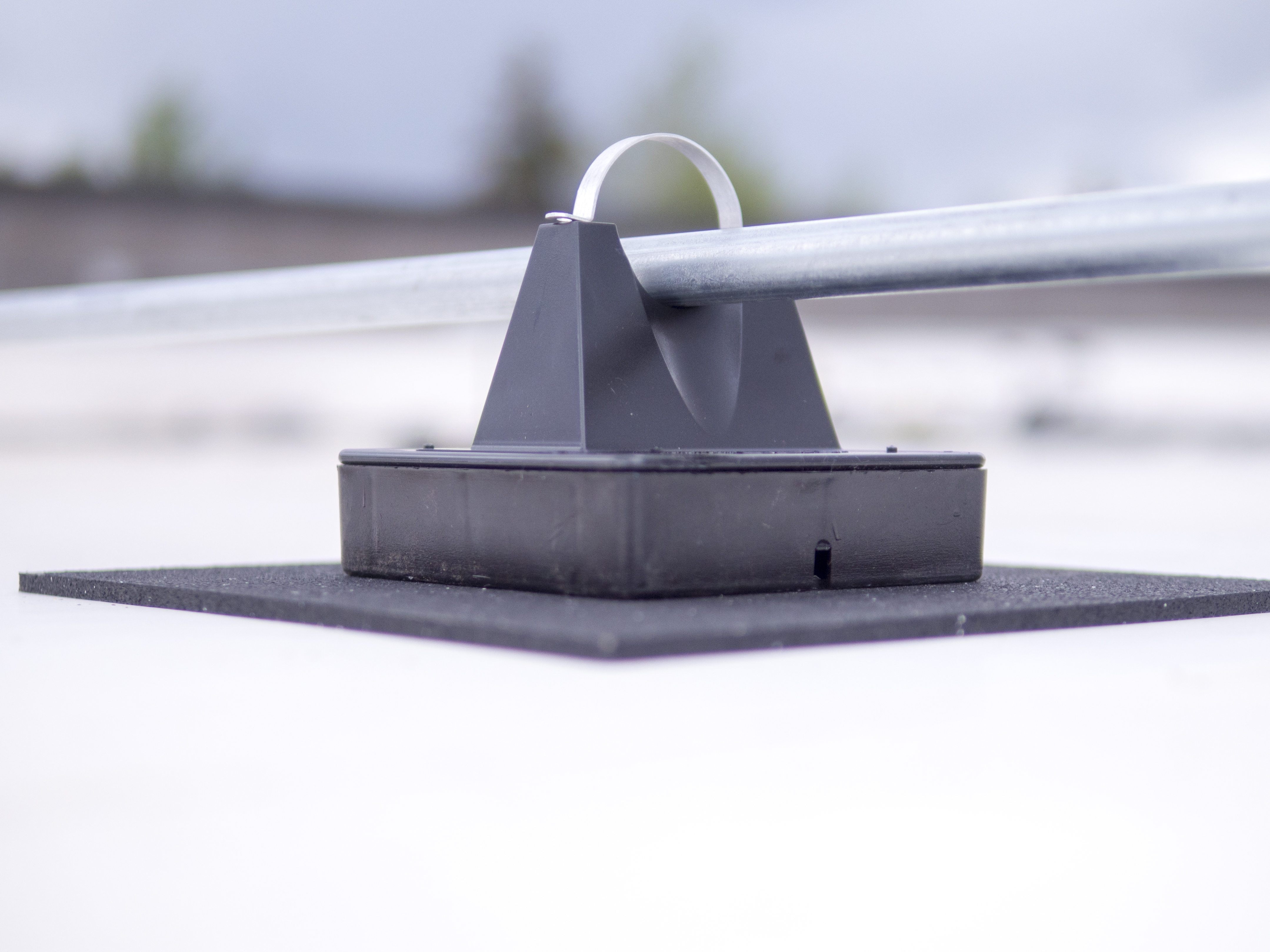

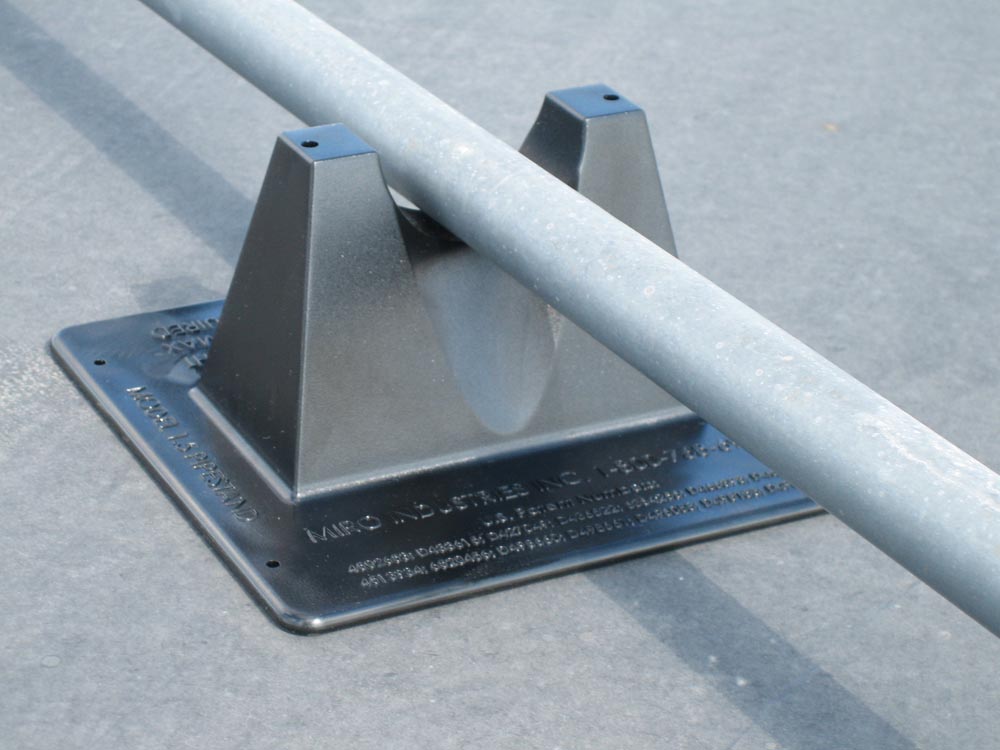

Installation Photos:
