Wind & Seismic

*The Wind and Seismic series is a custom product.
To obtain pricing for the this series, please have the following information available:
1. Pipe and/or Duct dimension
2. Insulation
3. Lineal feet of pipe and/or duct
4. Clearance height off roof
5. General Notes and Index Specification sheet

Downloads

Download Project Specific Wind/Seismic Design Requirements (PDF)

Stanchioned Crossover
  1. Spec & Drawing Sheets (PDF)
  2. Drawings (DWG)

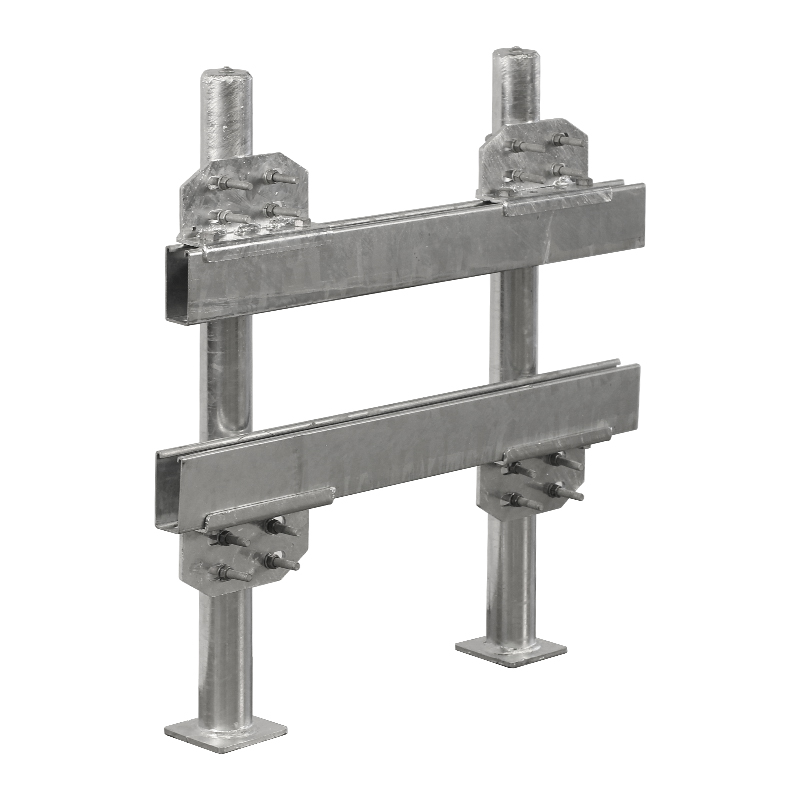

Stanchioned Duct Support
  1. Spec & Drawing Sheets (PDF)
  2. Drawings (DWG)
Stanchioned Duct Support Pipe
  1. Spec & Drawing Sheets (PDF)
  2. Drawings (DWG)
Stanchioned Duct Support
  1. Spec & Drawing Sheets (PDF)
  2. Drawings (DWG)

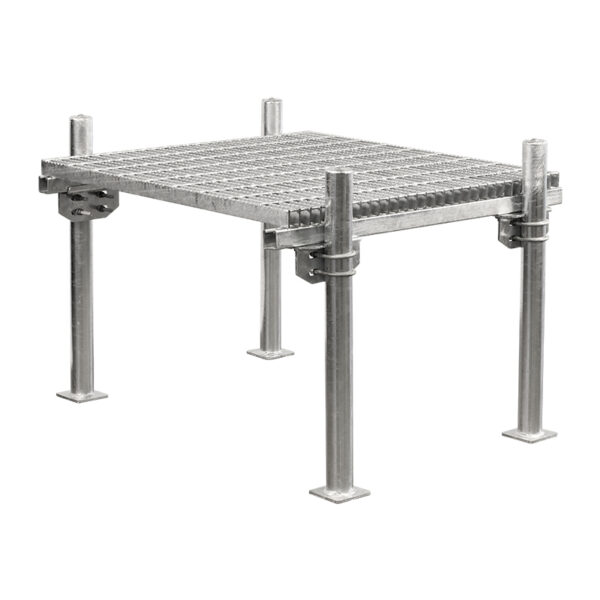

Stanchioned HD Unit
  1. Spec & Drawing Sheets (PDF)
  2. Drawings (DWG)
Stanchioned Pipe Support C3X5
  1. Spec & Drawing Sheets (PDF)
  2. Drawings (DWG)
Stanchioned Pipe Support Pipe
  1. Spec & Drawing Sheets (PDF)
  2. Drawings (DWG)
Stanchioned Pipe Support
  1. Spec & Drawing Sheets (PDF)
  2. Drawings (DWG)

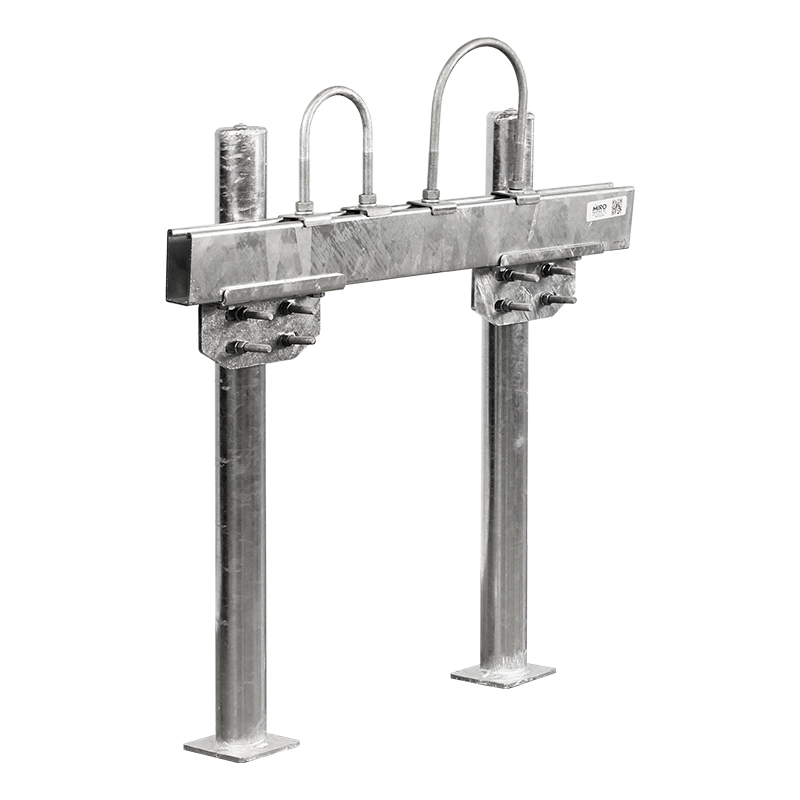

Stanchioned Single Pipe Support
  1. Spec & Drawing Sheets (PDF)
  2. Drawings (DWG)
Category: .

An engineered stanchion or ballast support system will be designed per project. The support system serves to keep the supported content (pipes, duct, electrical tray, ect.) vertically and laterally constrained while allowing the content to move longitudinally for expansion and contraction of the system. Wind and Seismic supports are designed with a project specific base arrangement to provide the required attachment to the structure to resist lateral and gravity loading from the frame. The project structural engineer is responsible for the design of the building structure and local reinforcement where required to withstand applied loads.


Base Material:




Size:

The seismic and wind series supports are designed to project specific requirements.



Max Pipe Size:




Max Pipe Clearance:

The Seismic & Wind Supports and its related configurations allow adjustable height as desired or required by the code or roof system. Each model can be configured to allow vertical and some lateral adjustment as specified.
Purchasers should specify code design criteria, desired heights and spacing when inquiring about each project application.



Max Load Weight:

The Seismic and Wind supports are engineered to ensure member/component capacities and deflection criteria are not exceeded.

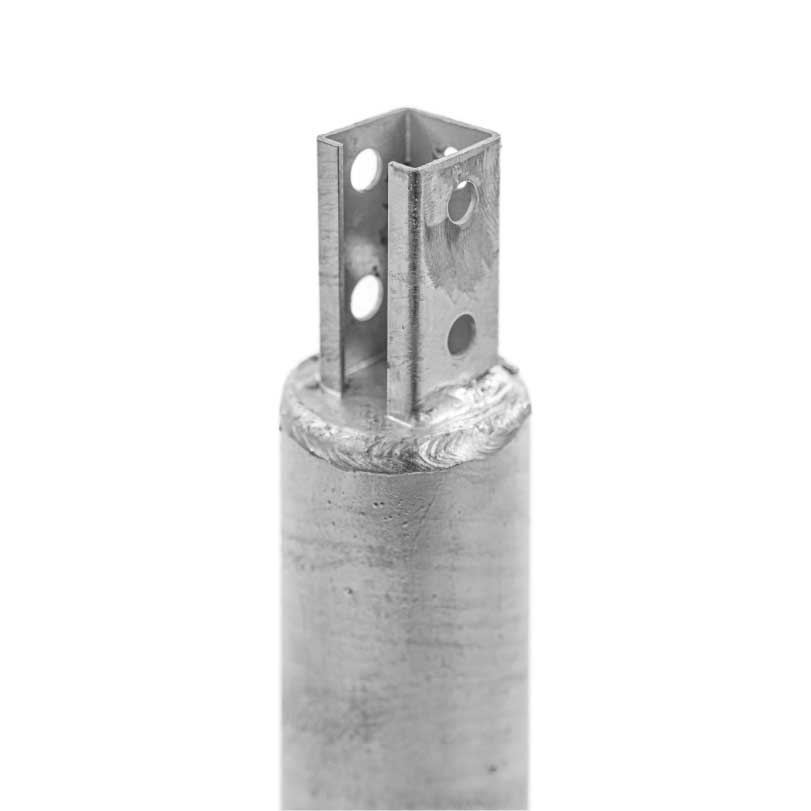

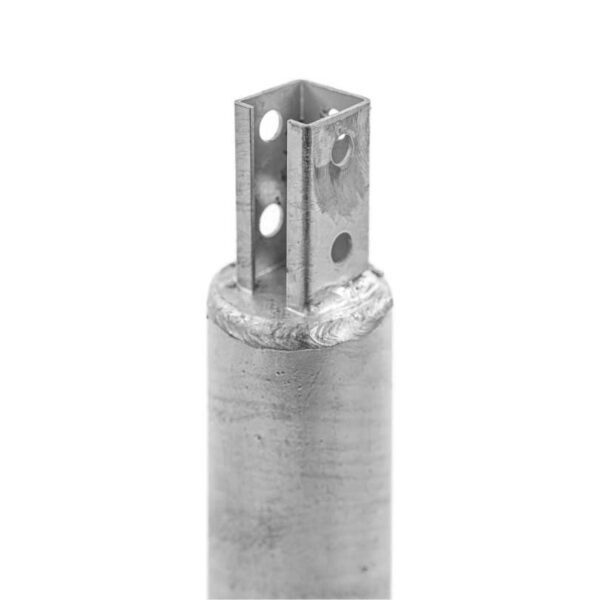

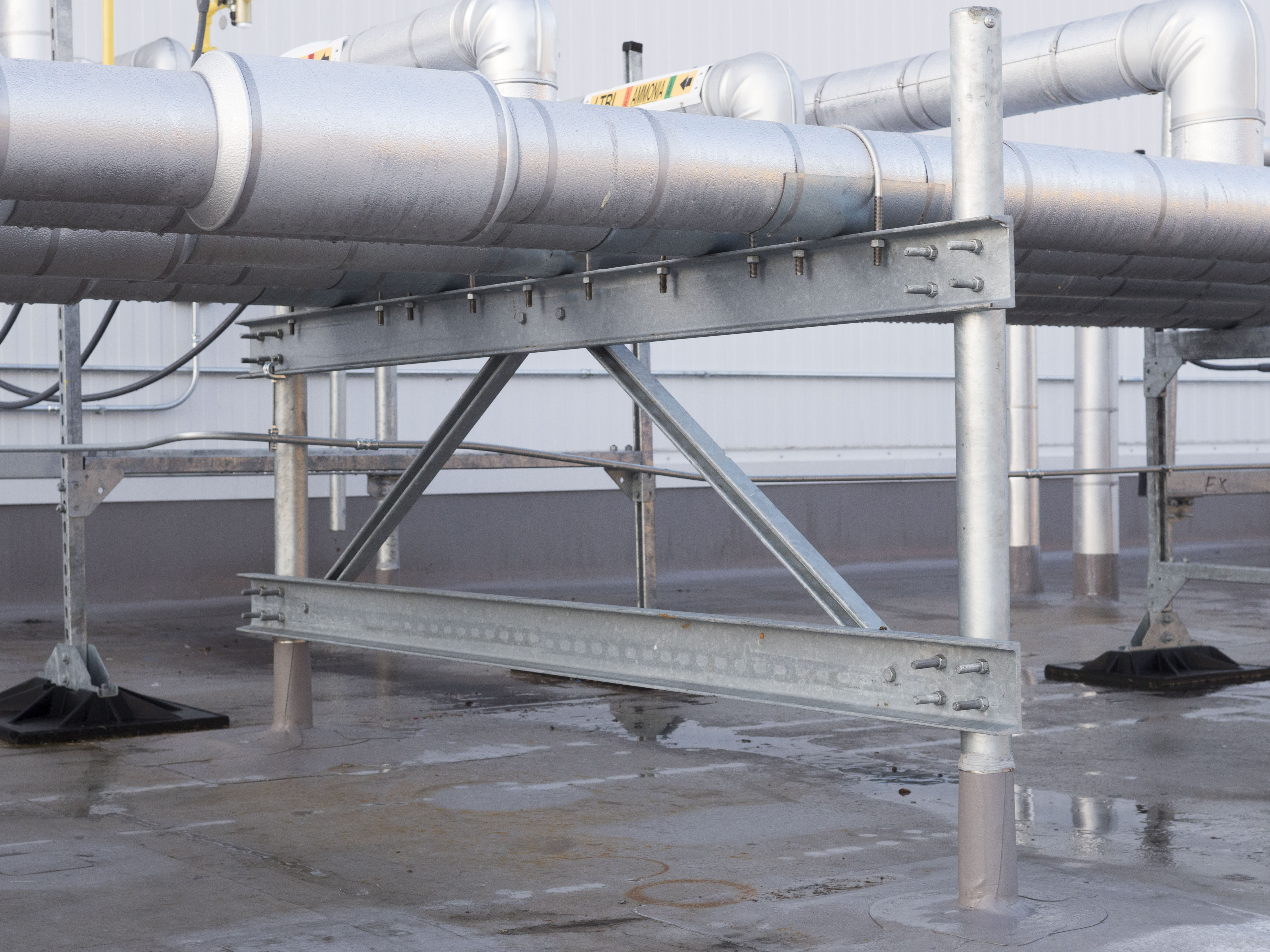

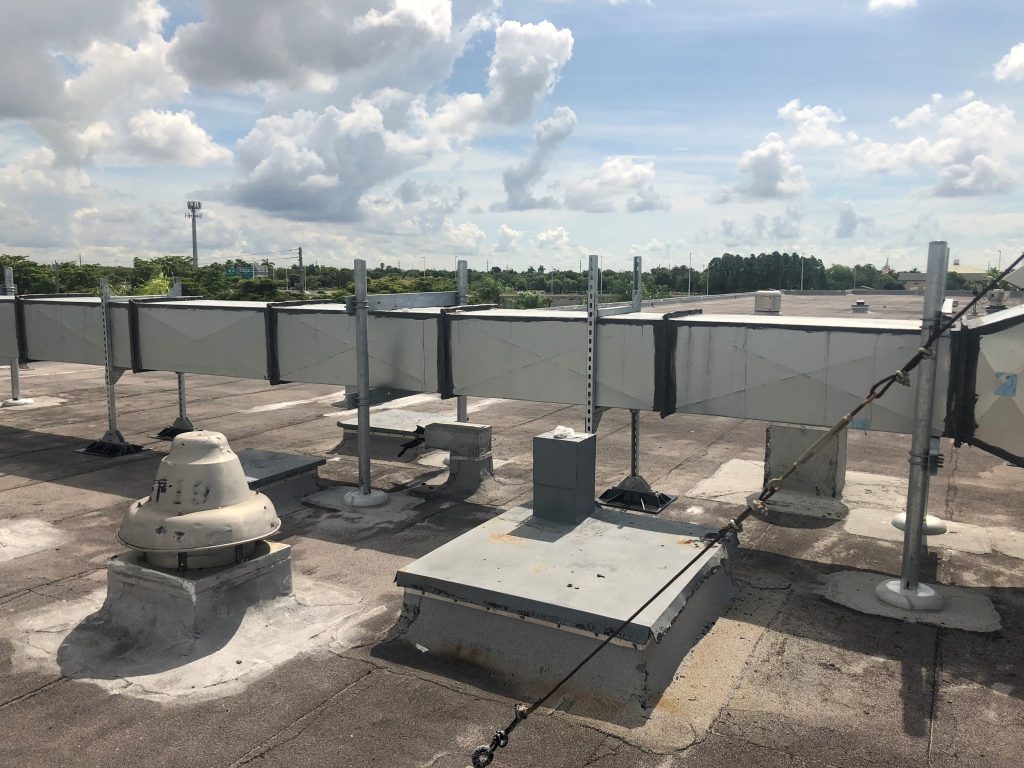

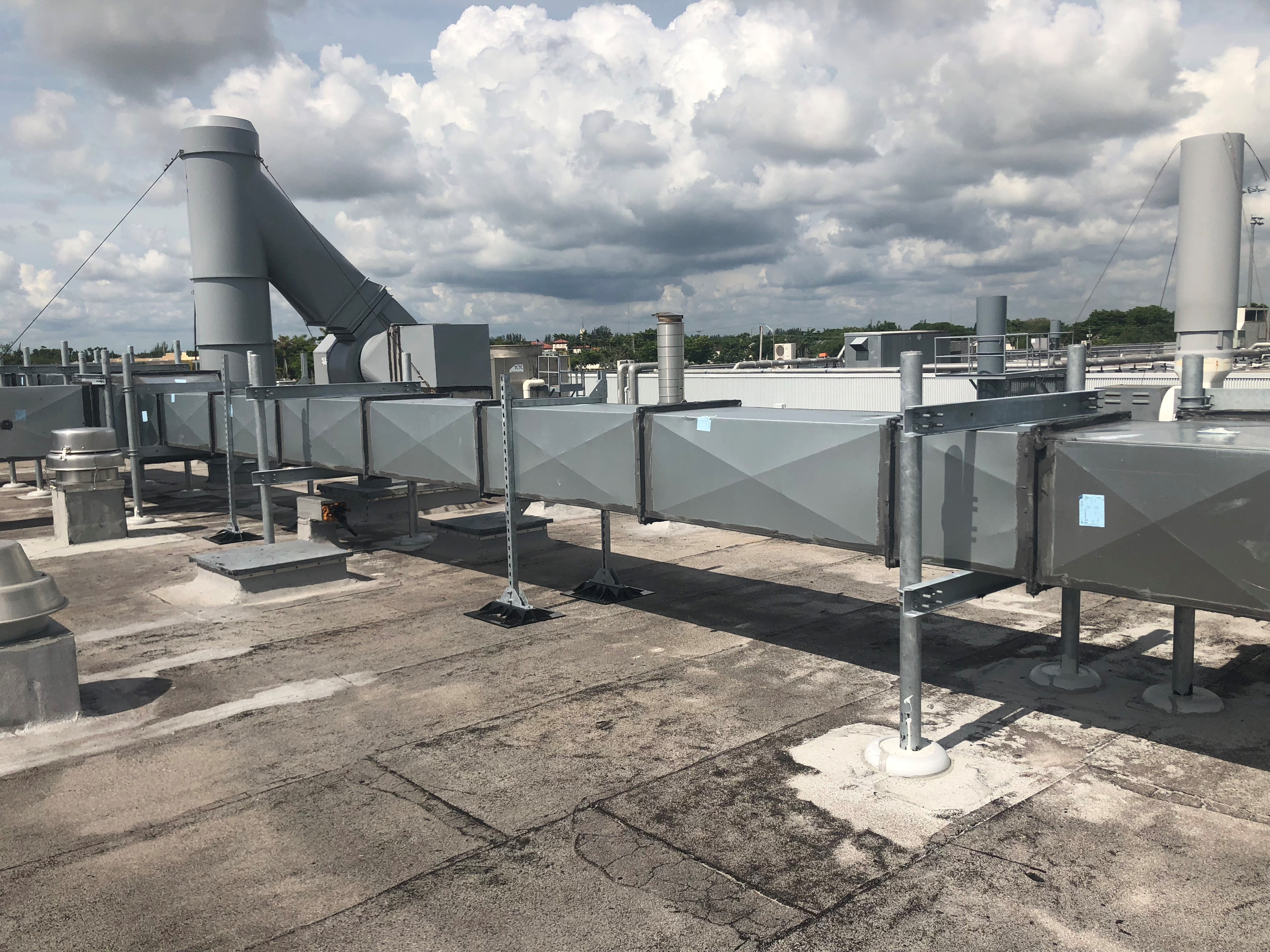

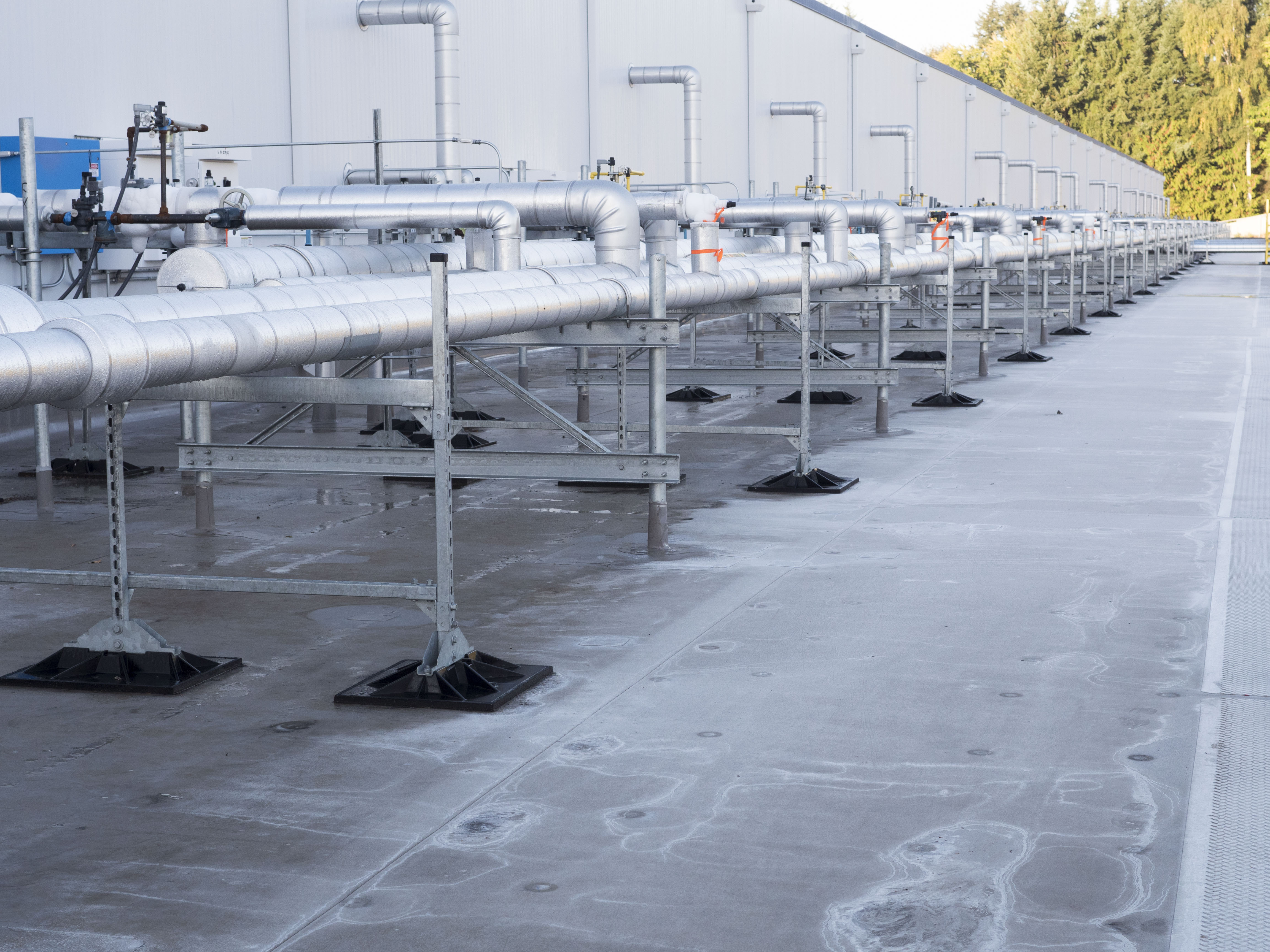

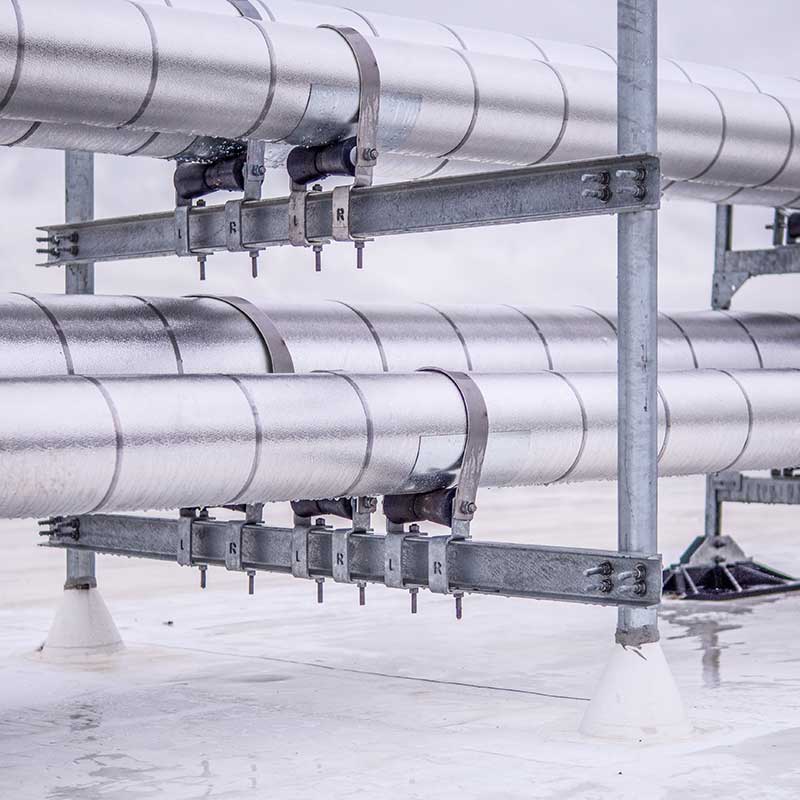

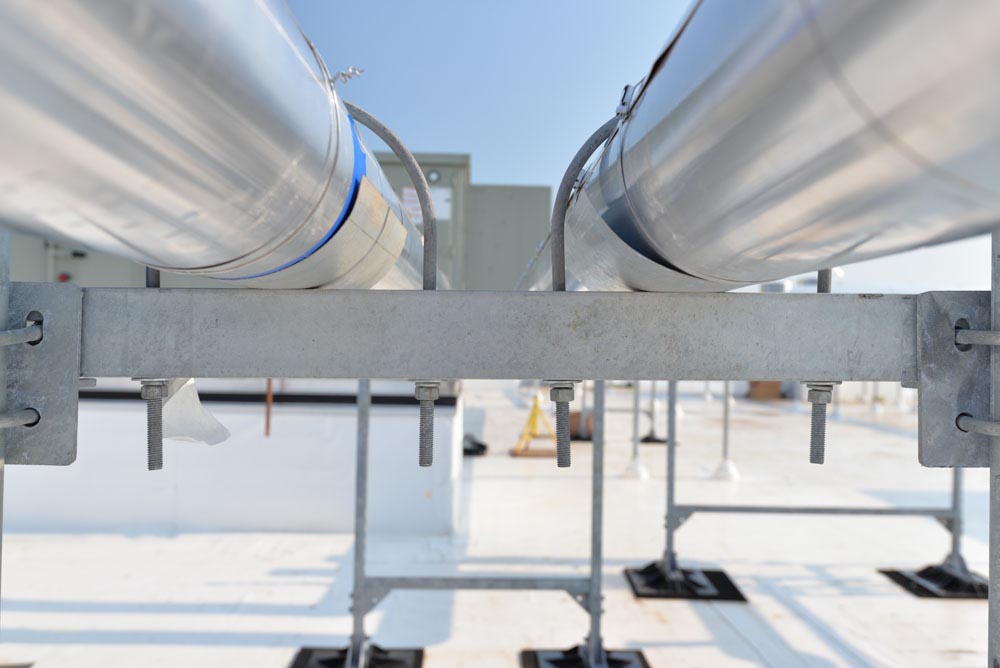

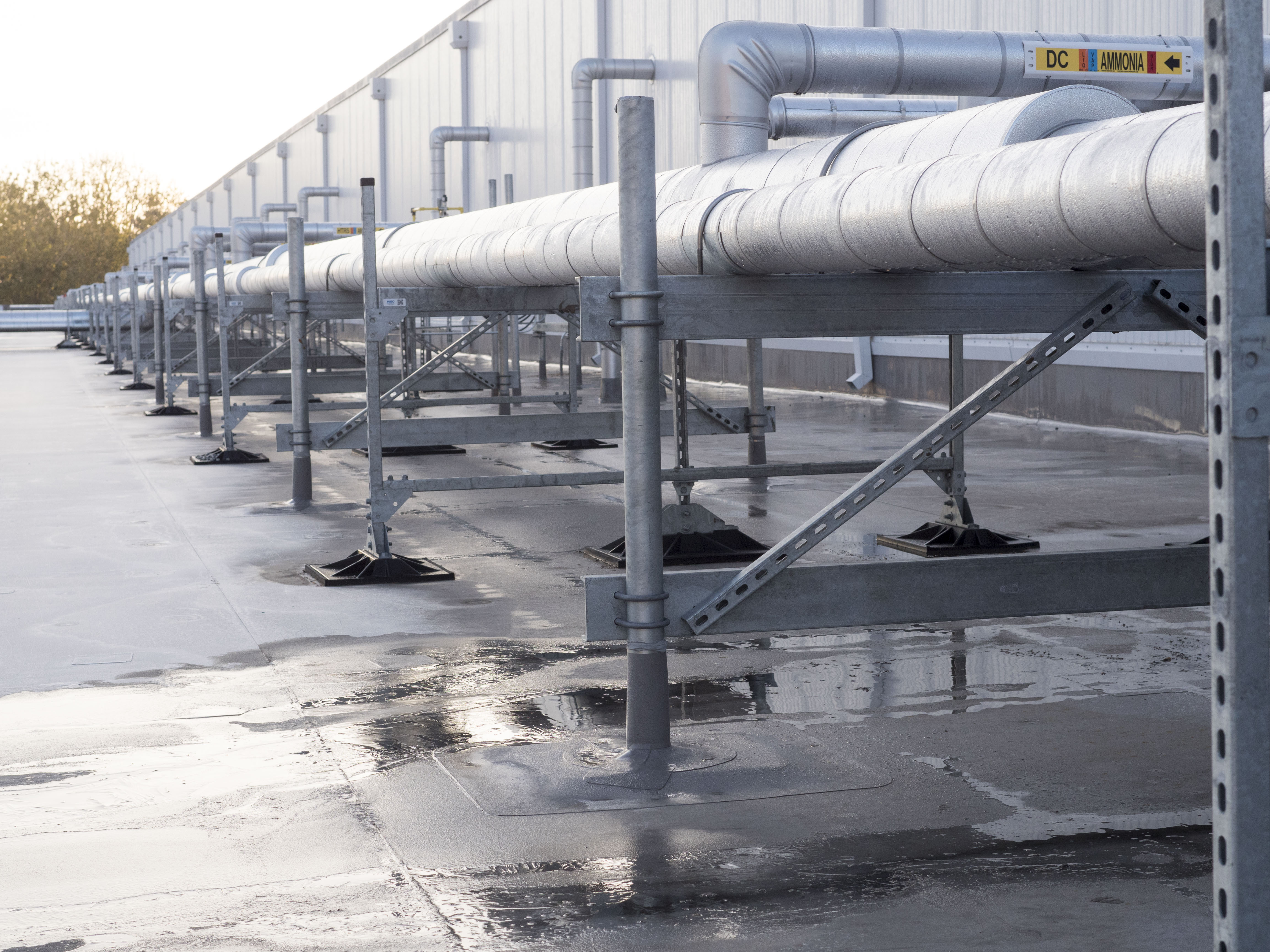

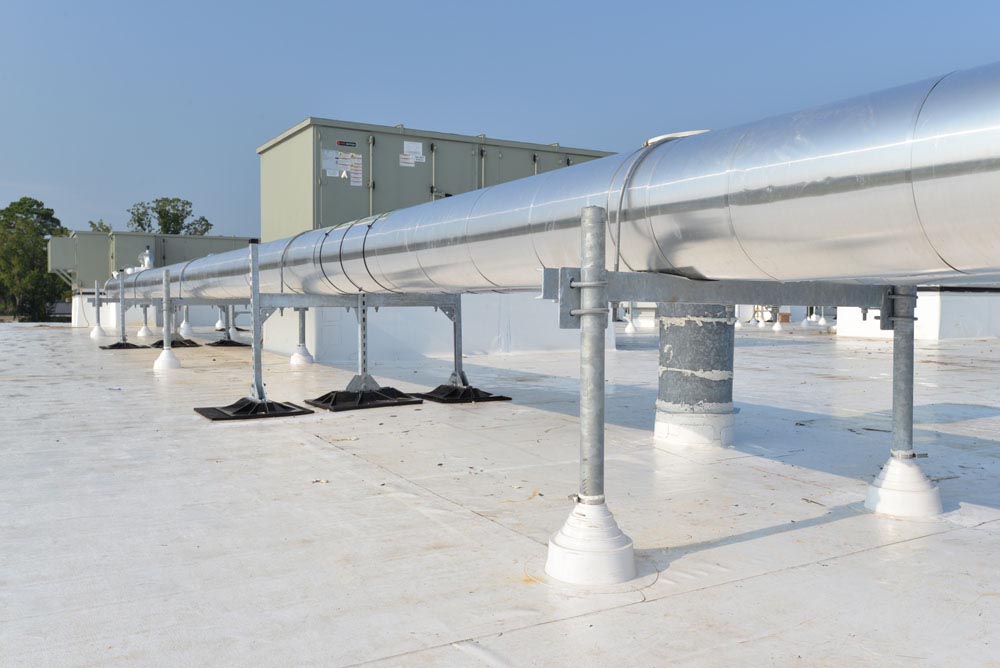

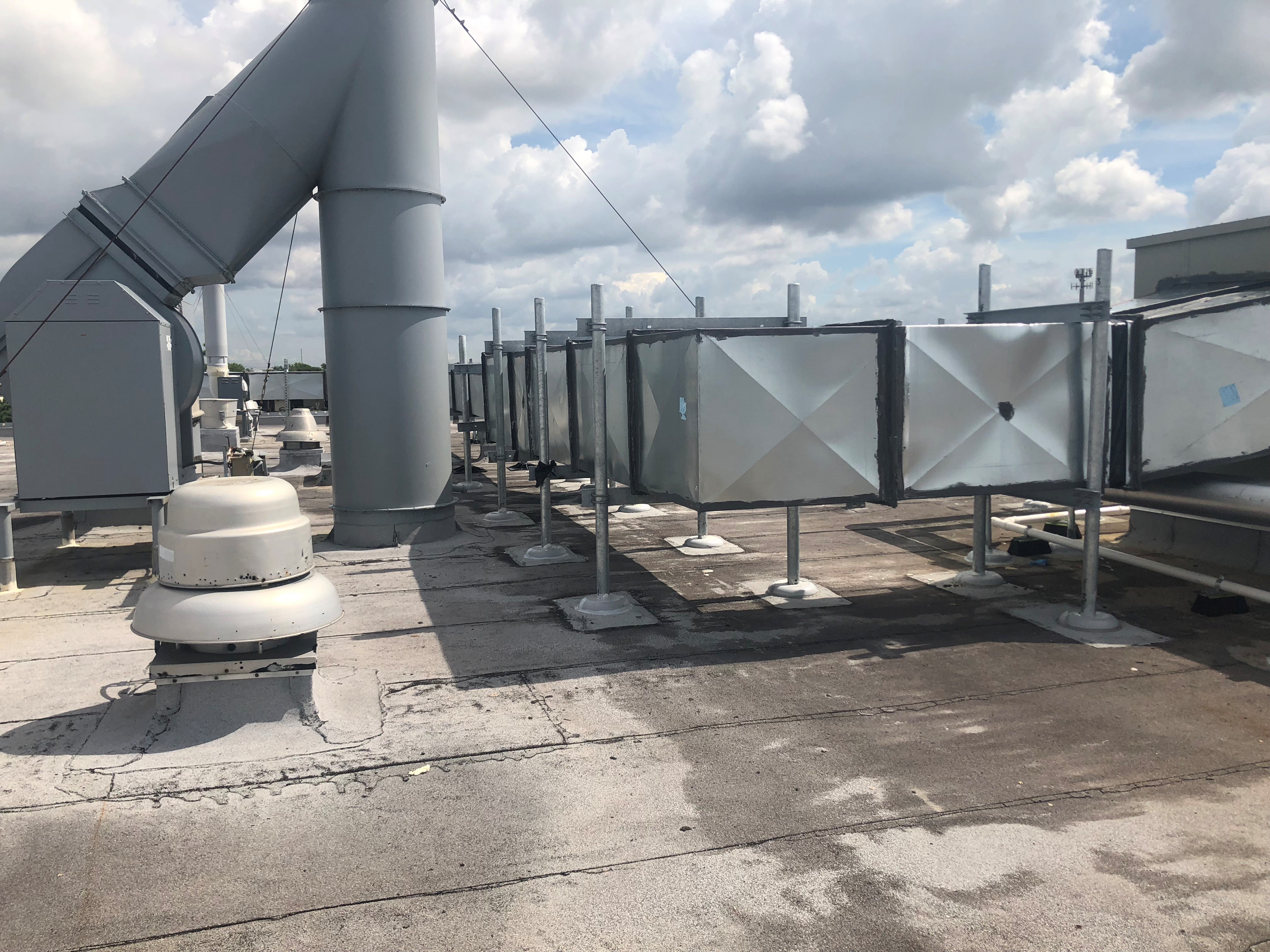

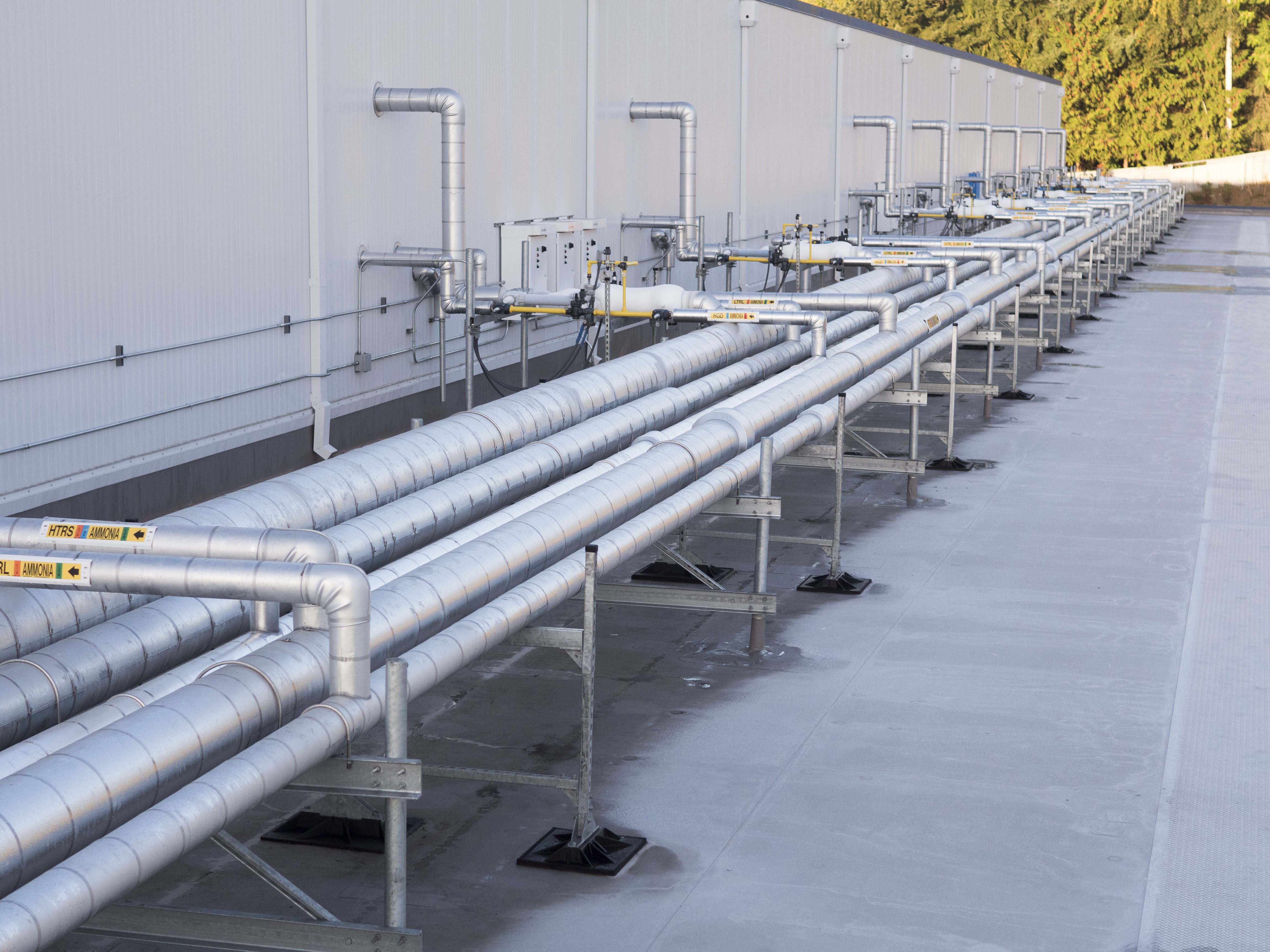

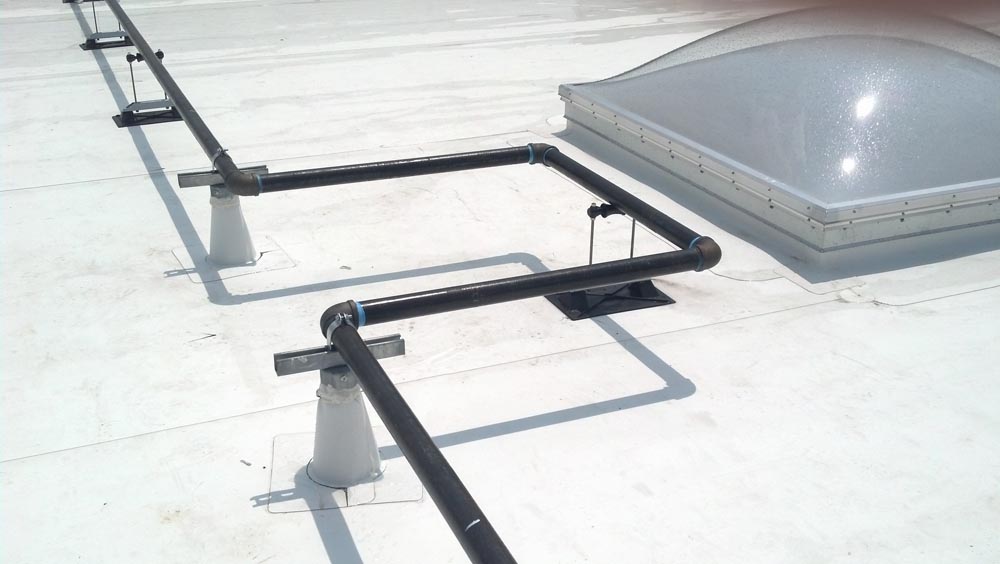

Installation Photos:

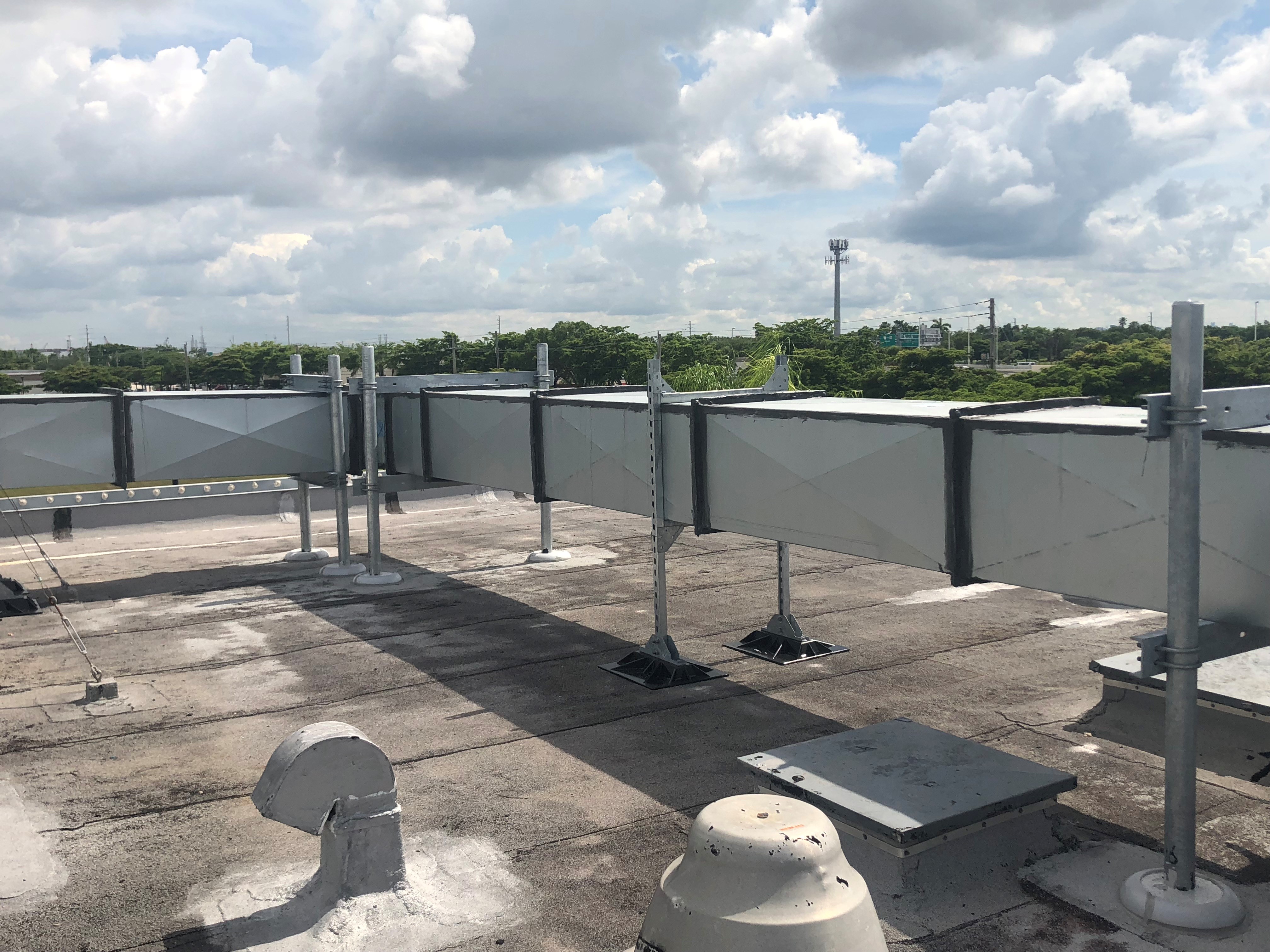

 wind seismic support

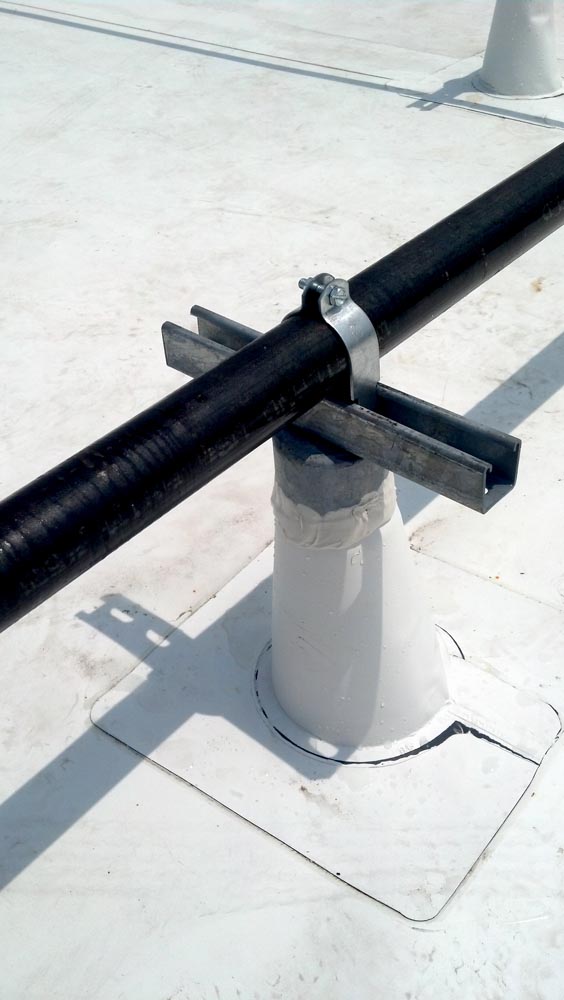

seismic install pipe support

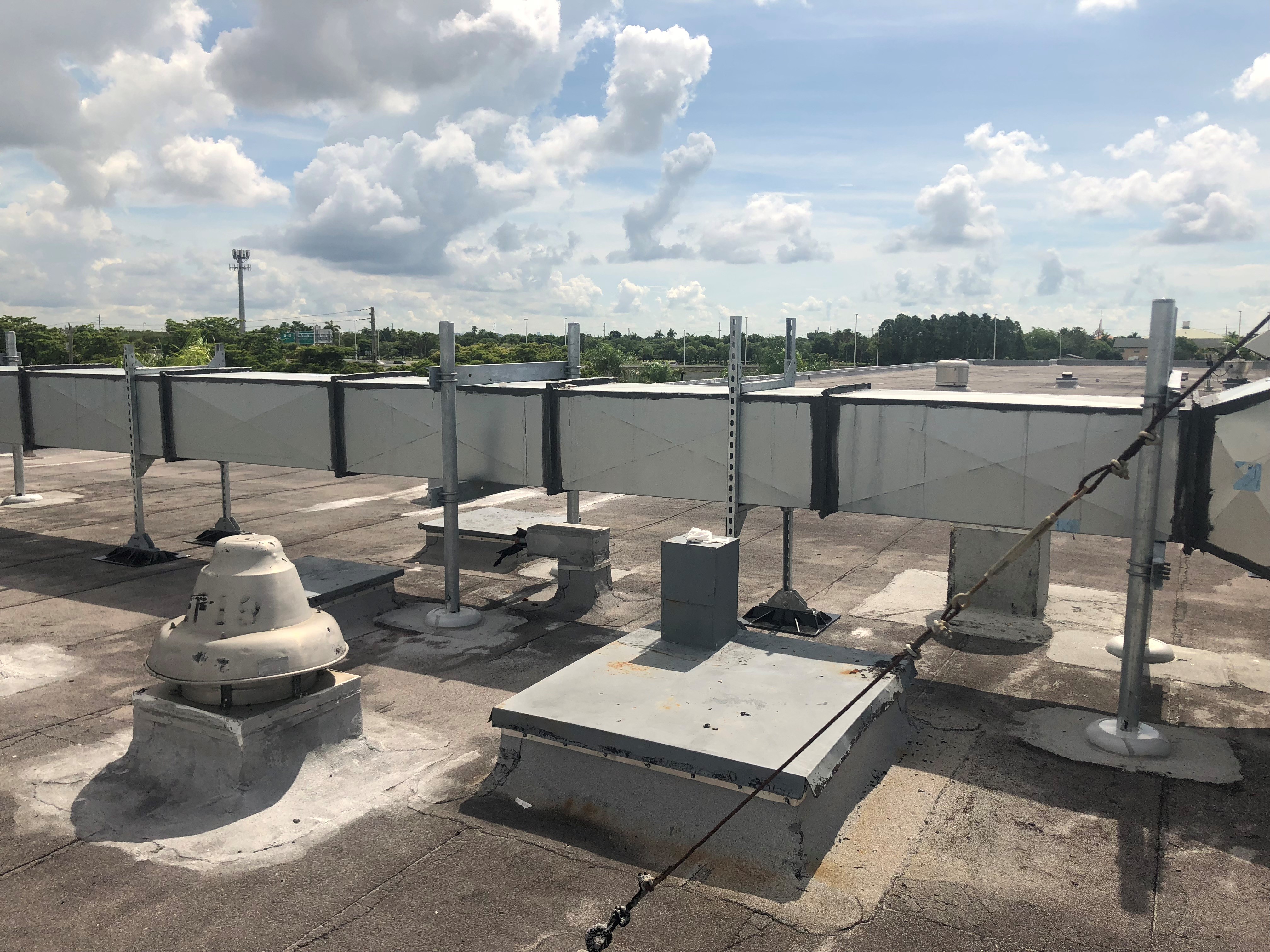

seismic proof pipe support system

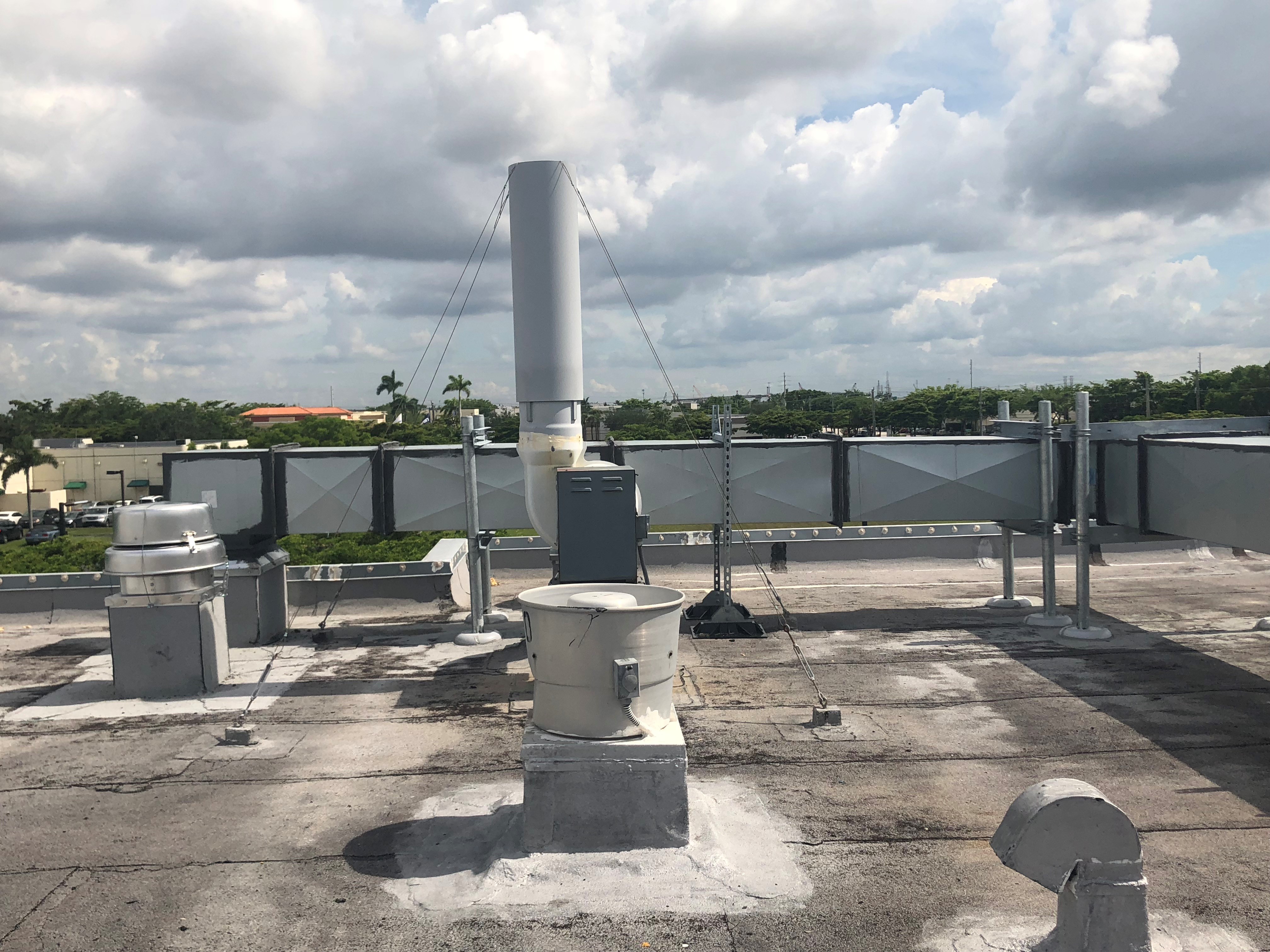

seismic proof pipe support system
